Texas Instruments provides a recommended layout and routing guide in the ADS6148IRGZT evaluation module (EVM) user's guide, which can be found on the TI website. It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
The ADS6148IRGZT datasheet provides a general guideline for analog input filtering. However, the optimal filter design depends on the specific application's frequency range, noise environment, and signal characteristics. Engineers can use filter design tools, such as TI's FilterPro or online filter calculators, to optimize the filter design for their specific application.
Clock jitter can affect the ADC's performance, particularly in high-frequency applications. The ADS6148IRGZT datasheet provides a clock jitter tolerance specification. To minimize the impact of clock jitter, engineers should use a high-quality clock source, such as a crystal oscillator, and ensure that the clock signal is properly filtered and decoupled.
The ADS6148IRGZT has an internal calibration mechanism, but it may require additional calibration for specific applications. Engineers should consult the datasheet and application notes for calibration procedures and consider using TI's calibration software tools, such as the ADC Calibration Tool, to optimize the calibration process.
The ADS6148IRGZT datasheet provides general guidelines for power supply decoupling and filtering. However, the specific requirements may vary depending on the application's power supply noise environment and layout. Engineers should consider using a combination of capacitors, ferrite beads, and voltage regulators to ensure a clean and stable power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6148IRGZT Overview

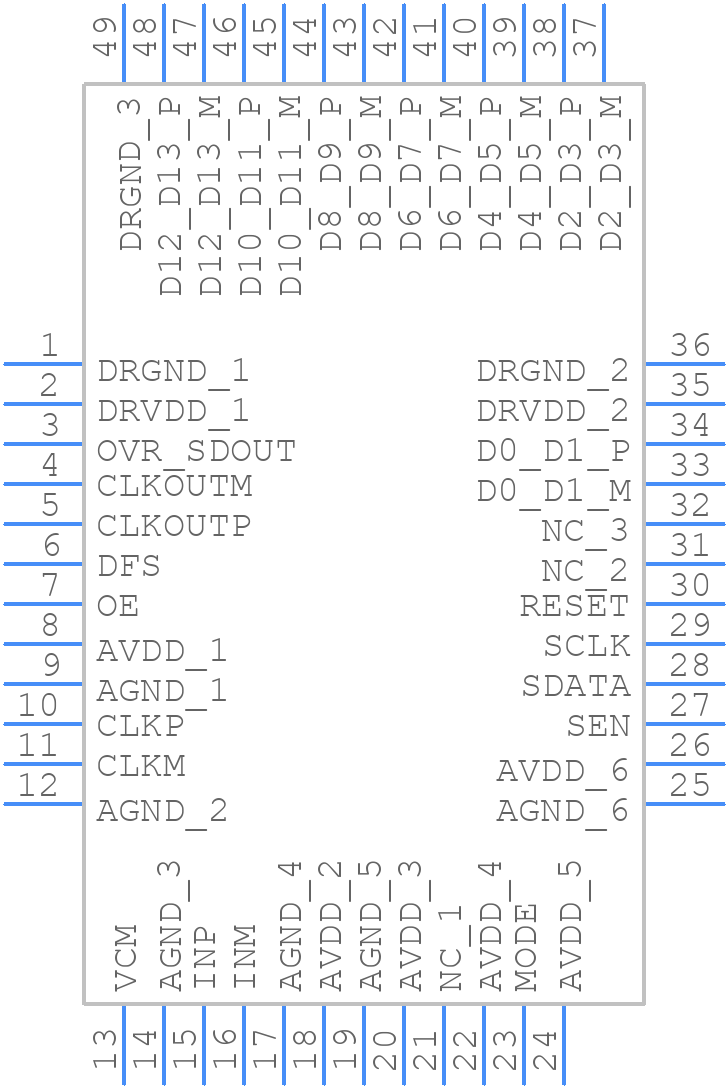

Use the download button to access the ADS6148IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
