ADS6222IRGZT - Texas Instruments

Description: Dual-Channel, 12-Bit, 65-MSPS Analog-to-Digital Converter (ADC)

Download ADS6222IRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

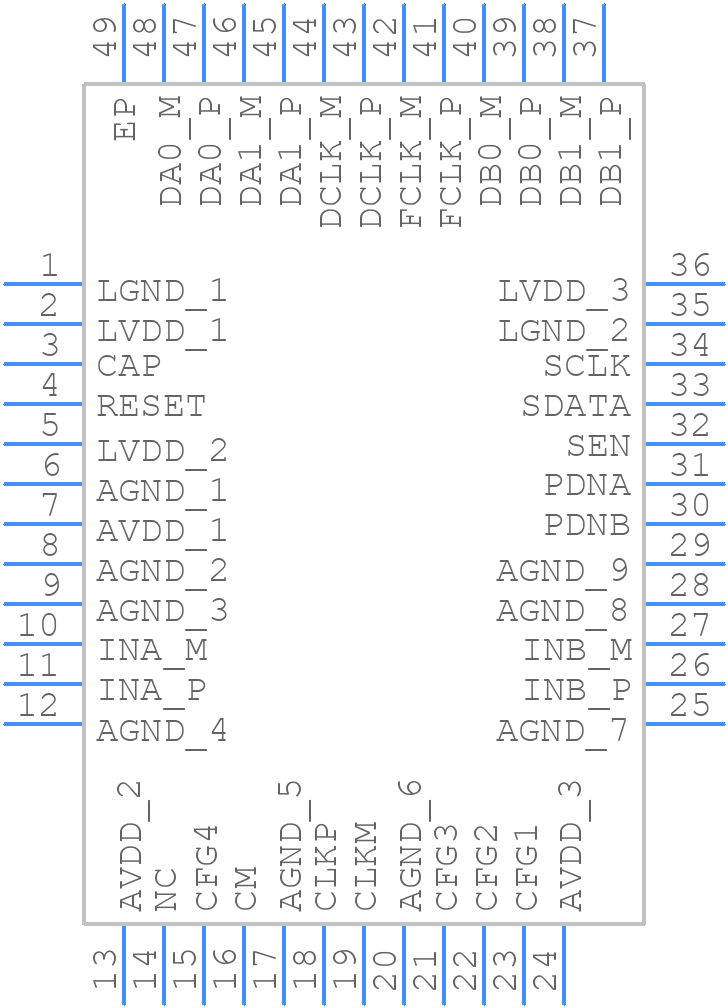

ADS6222IRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS6222IRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A
click to zoom
3D Models
ADS6222IRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A
click to zoom

ADS6222IRGZT Details

  • Manufacturer Part Number:

    ADS6222IRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-48

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADS6222IRGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS6222IRGZT evaluation module (EVM) user's guide, which can be found on the TI website. It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • To optimize the clock input, use a low-jitter clock source, and ensure the clock signal is properly terminated and routed. The clock input should be driven differentially, and the clock frequency should be within the specified range (10-65 MHz). Additionally, the clock signal should be free from noise and glitches.
  • The maximum input voltage range for the ADS6222IRGZT is ±VREF (±2.5V typical). However, the device can tolerate input voltages up to ±VCC (±3.6V maximum) without damage, but the accuracy and linearity may be compromised.
  • The ADS6222IRGZT outputs 12-bit digital data in a CMOS-compatible format. The output data should be captured and processed by a digital signal processor (DSP) or a microcontroller. The output data rate is equal to the clock frequency, and the data is output in a binary two's complement format.
  • The ADS6222IRGZT has a power-down mode that can be enabled by pulling the PD pin low. In this mode, the device consumes minimal power (typically <1mA) and the analog-to-digital conversion is disabled. This mode is useful for power-sensitive applications where the device needs to be powered down temporarily.
