Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals and avoid crossing digital signals over analog signals. Also, use a common mode filter or a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct gain setting, adjusting the sampling rate, and using the correct input range. Also, consider using the ADC's built-in features such as the programmable gain amplifier and the analog watchdog. Consult the datasheet and application notes for specific guidance.
The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure that the analog supply is stable before applying the digital supply. Also, ensure that the clock signal is stable before starting conversions.
The ADS7038QRTERQ1 has built-in error detection mechanisms such as the BUSY signal and the ERROR signal. Use these signals to detect and handle errors such as overflow, underflow, and clock errors. Consult the datasheet and application notes for specific guidance on error handling.
The ADS7038QRTERQ1 has a built-in calibration feature. Perform a self-calibration by writing the CAL_START command to the device. The device will then perform a self-calibration and store the calibration data in its internal registers. Consult the datasheet and application notes for specific guidance on calibration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7038QRTERQ1 Overview

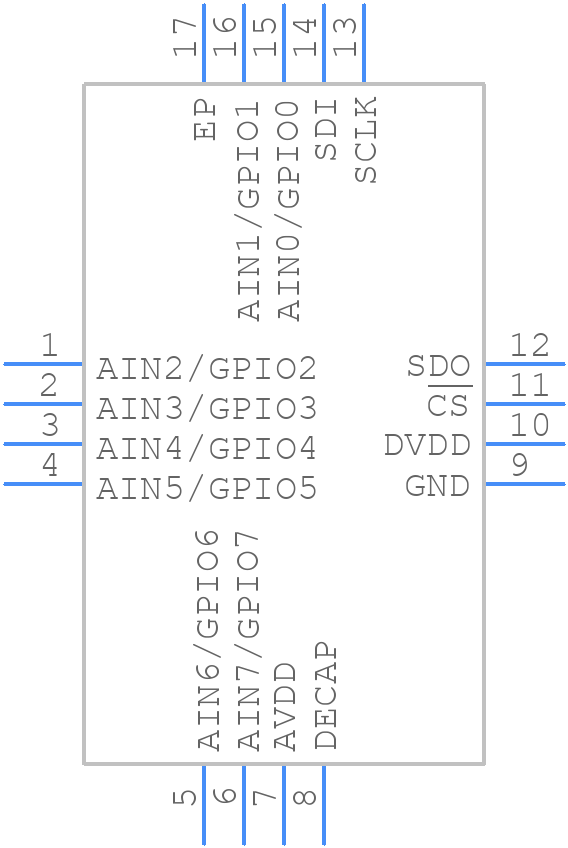

Use the download button to access the ADS7038QRTERQ1 schematic symbol, PCB footprint, and 3D model.
