Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
The ADS7040IDCUT has a built-in POR and BOR circuitry that resets the device during power-up and power-down sequences. To handle this, ensure that the power supply ramps up and down slowly, and that the device is held in reset until the power supply is stable. Additionally, the device's reset pin can be connected to a external reset circuit or a microcontroller to control the reset sequence.
The ADS7040IDCUT can operate with a clock frequency up to 1 MHz, but the recommended frequency is 500 kHz. The device can use an external clock source, such as a crystal oscillator or a clock generator, or it can use its internal clock source. However, using an external clock source is recommended for better accuracy and stability.
The ADS7040IDCUT has a built-in calibration circuitry that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the device's internal registers to achieve optimal accuracy. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
The ADS7040IDCUT can accept input signals in the range of 0 to 5 V, and the recommended input impedance is 1 kΩ or higher. The device can also accept differential input signals, and the recommended common-mode voltage is 2.5 V.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7040IDCUT Overview

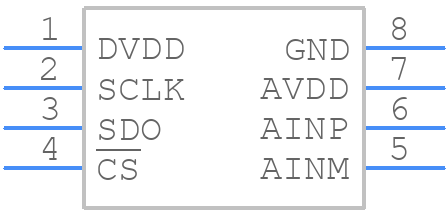

Use the download button to access the ADS7040IDCUT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
