Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
The ADS7041IDCUR has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve the highest accuracy. This can be done by applying a known input voltage and measuring the output code, then adjusting the gain and offset registers accordingly. The calibration process should be repeated at different temperatures and input voltages to ensure accuracy across the entire operating range.
The maximum sampling rate of the ADS7041IDCUR is 1 MSPS, but it can be adjusted to lower rates to reduce power consumption. The power consumption increases with the sampling rate, so it's recommended to use the lowest sampling rate necessary for the application to minimize power consumption.
The ADS7041IDCUR has internal overvoltage protection (OVP) and undervoltage protection (UVP) circuits that prevent damage to the device in case of input voltage exceeding the specified range. The OVP circuit limits the input voltage to 5.5V, and the UVP circuit prevents the device from operating below 1.65V. However, it's still recommended to use external protection circuits, such as voltage dividers or clamping diodes, to prevent damage from excessive voltage transients.
Yes, the ADS7041IDCUR can be used in a multi-channel application by connecting multiple devices to a single SPI bus. To synchronize the conversions, the SYNC pin can be used to trigger the conversions simultaneously. The SYNC pin can be connected to a common signal source, such as a clock signal, to ensure that all devices start converting at the same time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7041IDCUR Overview

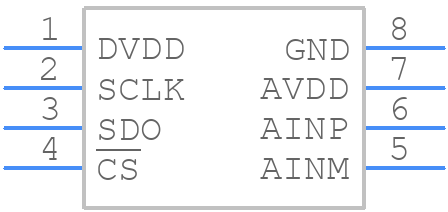

Use the download button to access the ADS7041IDCUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
