To minimize noise and ensure optimal performance, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals, and use a low-ESR capacitor for the AVDD pin.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate based on the input signal frequency, and use the internal reference voltage or an external reference voltage with low noise and high stability. Additionally, consider using a filter or amplifier before the ADC to condition the input signal.
The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
The ADS7042IDCUT outputs 12-bit data in a binary two's complement format. To handle the output data, you can use a microcontroller or FPGA with a 12-bit or 16-bit data bus. You may need to perform additional processing, such as scaling or offset correction, depending on your specific application.
The ADS7042IDCUT can handle input voltages up to the supply voltage (AVDD) minus 1.5V. Exceeding this voltage may cause damage to the device or affect its performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7042IDCUT Overview

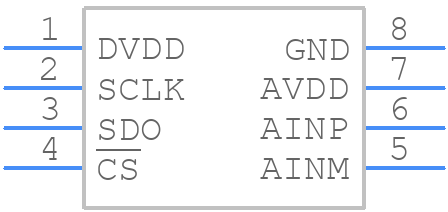

Use the download button to access the ADS7042IDCUT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
