Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be routed close to the AGND pin, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the power pins.
To optimize the ADC's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You should also consider the ADC's clock frequency, sampling rate, and gain settings. Additionally, you may need to adjust the ADC's internal voltage reference, and consider using an external voltage reference if necessary.
The ADS7046IRUGR can handle input voltages up to 5.5V without damaging the device. However, the recommended maximum input voltage is 3.6V to ensure optimal performance and to prevent damage from overvoltage.
The ADS7046IRUGR has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. You will need to configure the interface mode, clock frequency, and data format according to the microcontroller or FPGA's requirements.
The power consumption of the ADS7046IRUGR depends on the operating mode, clock frequency, and sampling rate. To reduce power consumption, you can use the ADC's power-down mode, reduce the clock frequency, or use a lower sampling rate. Additionally, you can use a lower supply voltage or use a voltage regulator to reduce power consumption.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7046IRUGR Overview

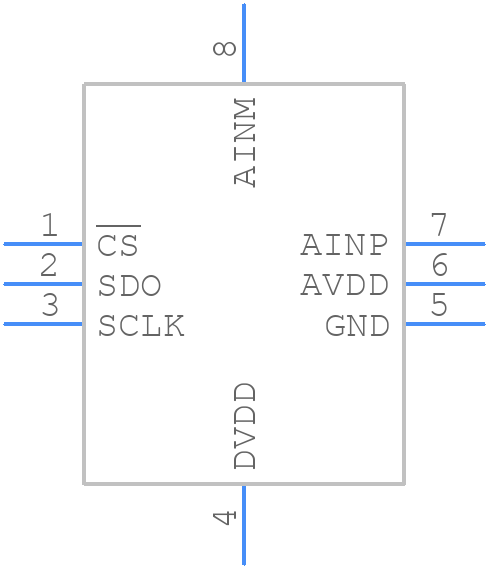

Use the download button to access the ADS7046IRUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
