Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Decoupling capacitors should be placed as close as possible to the VDD and VSS pins. A dedicated analog ground plane is also recommended.
Optimizing the ADC's performance requires careful consideration of the analog input signal, clock frequency, and digital output data rate. TI recommends using the ADC's internal clock, and adjusting the clock frequency to minimize jitter and noise. Additionally, using a low-pass filter on the analog input signal can help improve SNR and reduce noise.
The ADS7047IRUGR can achieve a maximum sampling rate of 3 MSPS, but this may vary depending on the specific application and system constraints. TI recommends consulting the datasheet and application notes for more information on achieving the highest possible sampling rate.
The ADS7047IRUGR has built-in error detection and correction mechanisms, including CRC error detection and parity checking. Engineers should implement error handling routines in their firmware to detect and respond to errors, such as data corruption or communication errors.
Yes, the ADS7047IRUGR can be used in multi-channel applications, but it requires careful consideration of the analog input multiplexing and channel switching. TI recommends using an external multiplexer or analog switch to select the desired channel, and ensuring that the ADC is properly configured for each channel.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7047IRUGR Overview

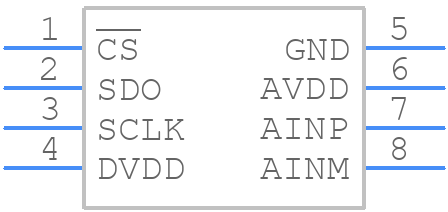

Use the download button to access the ADS7047IRUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
