Description:Analog to Digital Converters - ADC Eight-channel, 250-kSPS, 16-bit analog-to-digital converter with internal reference, GPIOs and SPI 16-WQFN -40 to 125
Texas Instruments provides a recommended layout and routing guide in the ADS7066IRTER evaluation module (EVM) user's guide, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS7066IRTER does not require calibration, as it is a self-calibrating ADC. However, it's recommended to follow the recommended layout and routing guidelines and ensure proper power supply decoupling to achieve the best accuracy.
The ADS7066IRTER can achieve a maximum sampling rate of 3 MSPS, but this may vary depending on the specific application and system design. It's recommended to consult the datasheet and application notes for more information.
Yes, the ADS7066IRTER can be used in a multi-channel application, but it's a single-channel ADC. To achieve multi-channel functionality, multiple ADS7066IRTER devices would need to be used, or a multi-channel ADC such as the ADS7166 would be a better fit.
The power consumption of the ADS7066IRTER is typically around 1.5mA at 3V supply voltage. To minimize power consumption, it's recommended to use the lowest possible supply voltage, reduce the sampling rate, and use the power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7066IRTER Overview

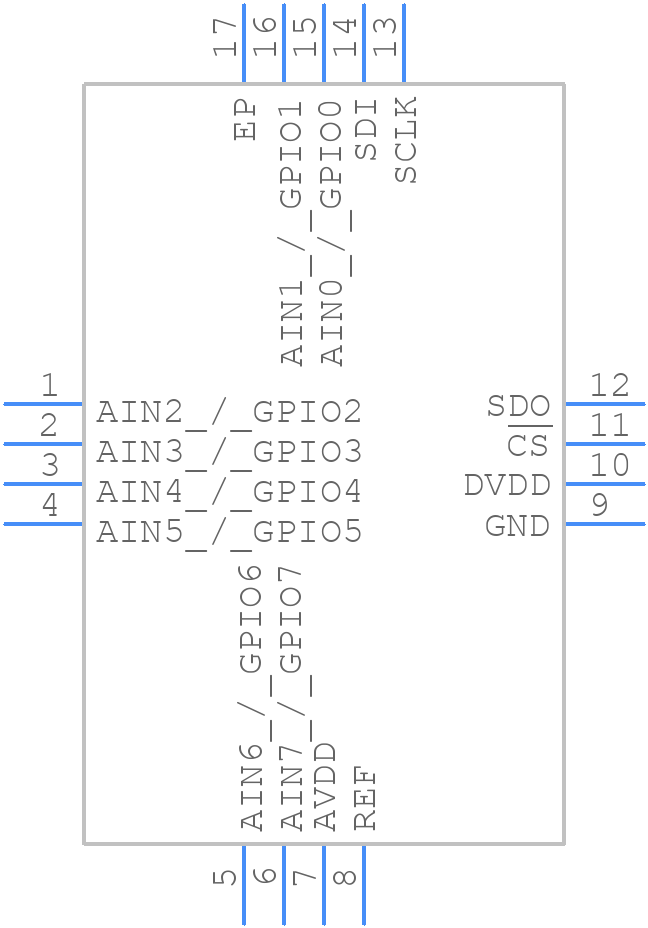

Use the download button to access the ADS7066IRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
