Description:Analog to Digital Converters - ADC 8-channel, 250-kSPS, 16-bit analog-to-digital converter (ADC) with internal reference, GPIOs and SPI 16-DSBGA -40 to 125
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, the power and ground pins should be decoupled with capacitors.
To optimize the ADC's performance, you should consider the input signal frequency, amplitude, and impedance. You should also consider the sampling rate, resolution, and noise tolerance of your application. Additionally, you can adjust the ADC's internal clock, reference voltage, and input range to optimize its performance.
The recommended power-up sequence is to first apply the analog power supply (AVDD), then the digital power supply (DVDD), and finally the clock signal. This ensures that the ADC's internal circuitry is properly initialized and configured.
The ADC's output data should be handled carefully to ensure accurate conversions. You should use a FIFO or a buffer to store the output data, and ensure that the data is read out of the ADC at a rate that is at least twice the sampling rate. Additionally, you should consider using a CRC or checksum to ensure data integrity.
The ADS7066IYBHT has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, you should consider the thermal resistance of the package, the PCB, and the surrounding environment. You should also consider using thermal vias, heat sinks, and thermal interfaces to dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7066IYBHT Overview

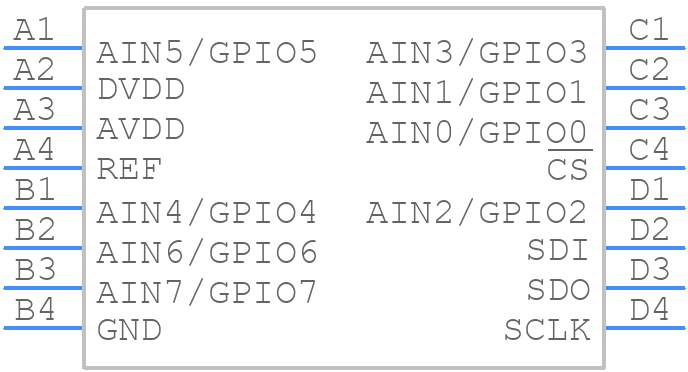

Use the download button to access the ADS7066IYBHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
