Description:Analog to Digital Converters - ADC Eight-channel, 800-kSPS, 16-bit SAR analog-to-digital converter (ADC) with GPIOs and SPI 16-DSBGA -40 to 125
Texas Instruments provides a layout guide in the datasheet, but for optimal performance, it's recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, route the analog signals away from digital signals and use shielding if possible.
The ADS7067IYBHT requires a specific power-up and power-down sequencing to prevent damage. The recommended sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the interface clock (SCLK). During power-down, the sequence should be reversed.
The ADS7067IYBHT can achieve a maximum sampling rate of 500 kSPS. However, the actual sampling rate may be limited by the interface clock frequency, the conversion time, and the settling time of the analog input signal. Additionally, the sampling rate may also be affected by the system noise and the analog input signal bandwidth.
The ADS7067IYBHT does not require calibration, as it has an internal calibration circuit that performs offset and gain calibration during power-up. However, it's recommended to perform a system-level calibration to account for any external component tolerances and PCB layout effects.
The recommended operating temperature range for the ADS7067IYBHT is -40°C to 125°C. The device's performance may be affected by temperature, with increased noise and decreased accuracy at higher temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7067IYBHT Overview

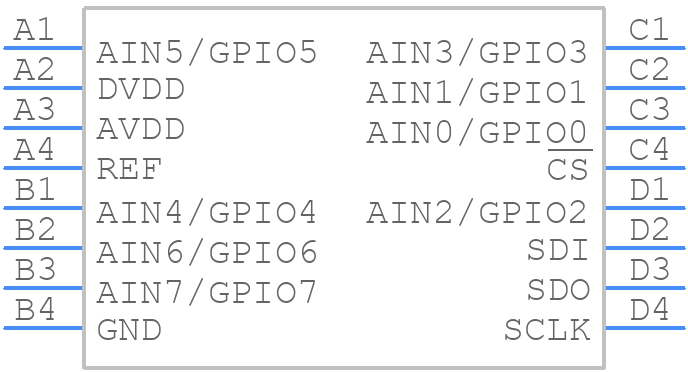

Use the download button to access the ADS7067IYBHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
