Description:Analog to Digital Converters - ADC Automotive 2-channel 12-bit 140-kSPS I2C-compatible ADC with programmable threshold and host wake-up 10-WSON -40 to 125
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's also recommended to consult with a PCB design expert to ensure optimal performance.
To optimize the ADC's performance, it's essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the correct gain, offset, and sampling rate. Additionally, ensuring a clean power supply, minimizing noise, and using proper filtering can also improve performance.
The ADS7142QDQCRQ1 can achieve a maximum sampling rate of 1 MSPS. However, the actual sampling rate may be limited by the system's clock speed, data conversion time, and other factors. It's essential to consult the datasheet and application notes for specific guidance.
The ADS7142QDQCRQ1 has a latency of approximately 1.5 clock cycles. To ensure data integrity, it's essential to consider the ADC's latency when designing the system's timing and synchronization. Additionally, using a FIFO or buffer can help manage data flow and prevent data loss.
The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). When powering down, the sequence should be reversed. It's essential to follow the recommended power-up and power-down sequence to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7142QDQCRQ1 Overview

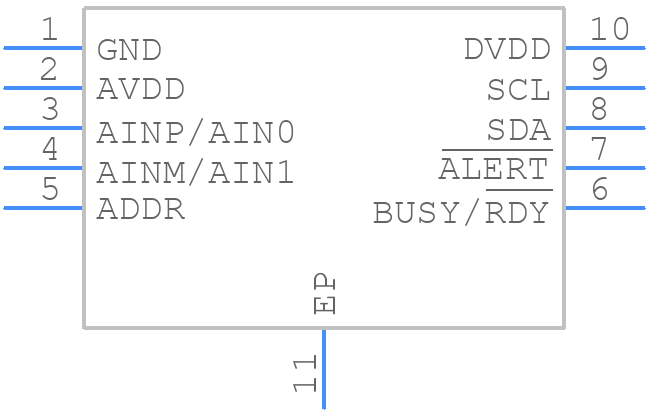

Use the download button to access the ADS7142QDQCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS71,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
