The ADS7263SRHBT requires careful layout and routing to achieve optimal performance. TI recommends using a 4-layer PCB with a solid ground plane, and keeping analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device, and the analog input traces should be shielded to minimize noise.
To optimize the ADS7263SRHBT's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and signal conditioning of the input signal, and consider using the device's built-in features such as the programmable gain amplifier and the digital filter.
The recommended power-up sequence for the ADS7263SRHBT is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
The ADS7263SRHBT outputs 16-bit data in a serial format. To handle the digital output data, use a microcontroller or FPGA to receive and process the data. Ensure that the receiving device is properly synchronized with the ADS7263SRHBT's clock signal, and consider using a FIFO or buffer to handle the data stream.
The ADS7263SRHBT has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or heat sinks if the device will be operating in a high-temperature environment.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7263SRHBT Overview

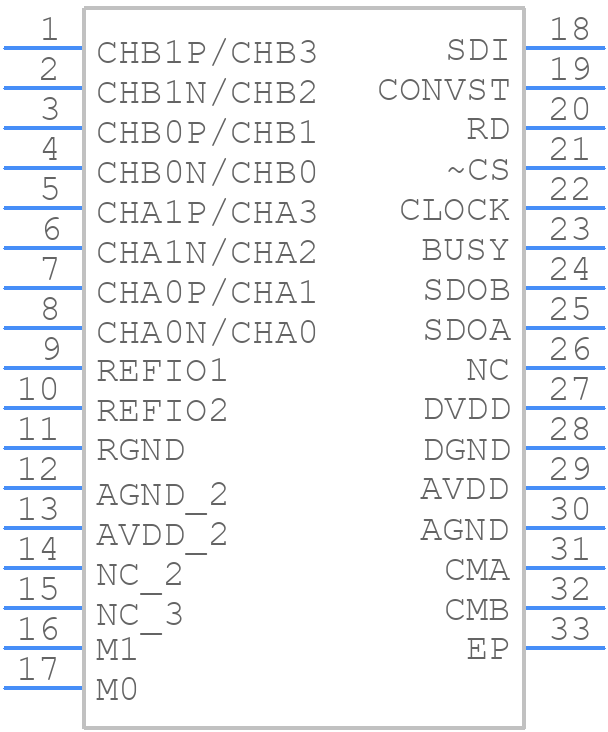

Use the download button to access the ADS7263SRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS72,
or try a keyword search, such as Analog to Digital Converters
