The recommended power-up sequence is to apply VDD (analog supply) first, followed by VIO (digital supply) and then the clock signal. This ensures proper initialization of the device.
To optimize the analog input impedance, use a low-impedance source (e.g., a buffer amplifier) and keep the input traces as short as possible. Additionally, use a capacitor (e.g., 10nF) in parallel with a resistor (e.g., 1kΩ) to filter out high-frequency noise.
The ADS7280IPW supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
The ADS7280IPW outputs data in a 16-bit, two's complement format. To handle the output data, use a microcontroller or FPGA to receive and process the data. Ensure proper synchronization and data alignment to avoid data corruption.
To minimize noise and ensure proper operation, follow these layout and routing guidelines: keep analog and digital traces separate, use a solid ground plane, and avoid crossing analog and digital signals. Additionally, use a decoupling capacitor (e.g., 0.1μF) near the device to filter out power supply noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7280IPW Overview

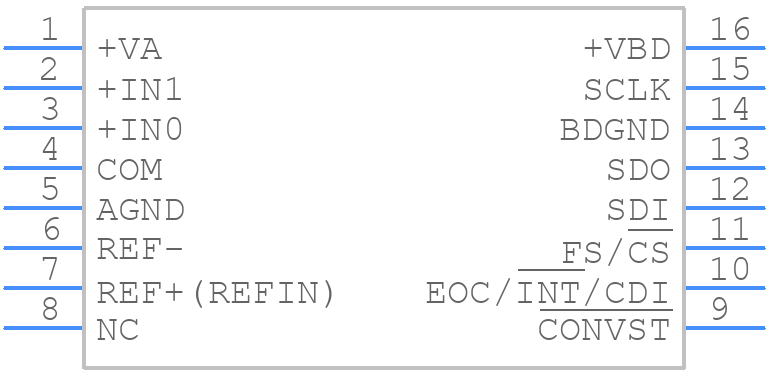

Use the download button to access the ADS7280IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS72,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
