PARALLEL, 8 BITS, PARALLEL, 4 BITS, PARALLEL, WORD
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP24,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.333 MHz
Sample and Hold / Track and Hold:
SAMPLE
Seated Height-Max:
2.65 mm
Supply Current-Max:
25 mA
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
ADS7800JU/1K Frequently Asked Questions (FAQs)
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
The POR circuitry ensures that the device is in a known state after power-up. It is recommended to use an external POR circuit or a supervisor IC to ensure a clean power-up sequence. Not using POR can result in unpredictable behavior, incorrect conversions, and potential damage to the device or surrounding circuitry.
The ADS7800JU/1K's accuracy is affected by temperature, with a typical temperature coefficient of ±1 ppm/°C. To compensate for temperature effects, an external temperature sensor can be used to monitor the device's temperature, and the resulting data can be used to correct the conversion results. Alternatively, the device can be calibrated at multiple temperatures to create a lookup table for temperature compensation.
To ensure EMC and EMI compliance, follow proper PCB layout and routing guidelines, use shielding and grounding techniques, and implement filtering and decoupling on the device's power and signal lines. Additionally, consider using a metal shield or enclosure around the device and surrounding circuitry to reduce radiated emissions.
The ADS7800JU/1K is sensitive to high-frequency noise, including clock noise. To minimize clock noise, use a clock signal with a low slew rate, and consider using a clock buffer or isolator to reduce the clock signal's amplitude and frequency. Additionally, use proper PCB layout and routing techniques to keep the clock signal away from the analog inputs and power lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7800JU/1K Overview

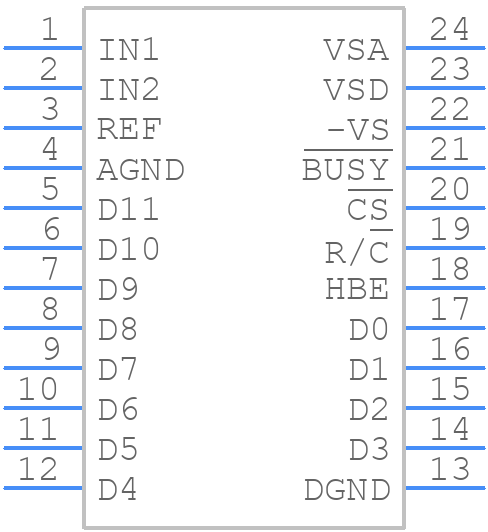

Use the download button to access the ADS7800JU/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
