Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-speed analog layout practices, such as keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and impedance mismatches.
The clock input should be driven by a low-jitter, high-frequency clock source, and the clock signal should be routed as a differential pair to minimize noise and radiation. Additionally, the clock input should be terminated with a 100-ohm differential resistor to match the impedance of the clock signal.
The maximum sampling rate of the ADS7804UG4 is 1.5 MSPS, but this can be limited by the analog input bandwidth, the clock frequency, and the system noise floor. In practice, the achievable sampling rate may be lower depending on the specific application and system design.
The ADS7804UG4 has an internal calibration circuit that can be used to calibrate the ADC for optimal performance. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to minimize offset and gain errors. Texas Instruments provides a calibration procedure in the datasheet and application notes.
The power consumption of the ADS7804UG4 depends on the operating frequency, input voltage range, and other factors. The typical power consumption is around 35 mW at 1.5 MSPS. To reduce power consumption, you can lower the operating frequency, reduce the input voltage range, or use the power-down mode when the ADC is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7804UG4 Overview

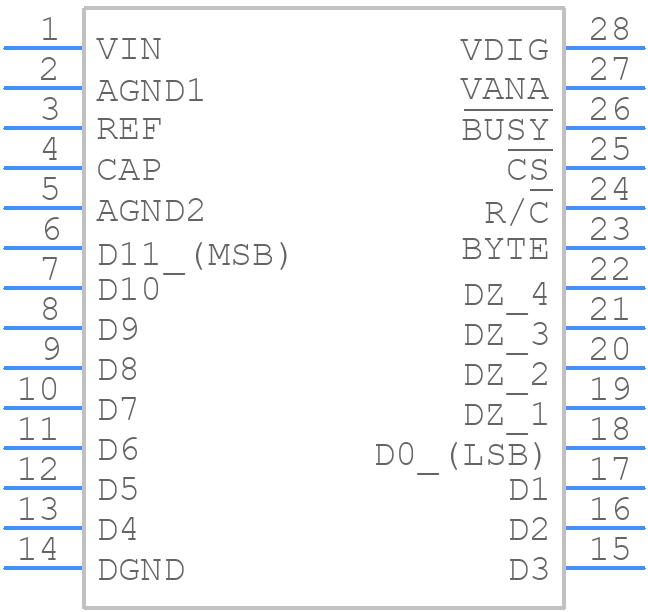

Use the download button to access the ADS7804UG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
