The ADS7806P requires careful layout and routing to minimize noise and ensure accurate conversions. TI recommends using a 4-layer PCB with a solid ground plane, keeping analog and digital traces separate, and using a common mode filter to reduce noise.
To optimize the ADS7806P for low-power applications, use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not converting. Additionally, consider using a lower supply voltage and reducing the analog input range.
To handle overvoltage conditions, use external voltage limiting resistors and diodes to clamp the input voltage to a safe level. Additionally, consider using a voltage supervisor or reset IC to detect and respond to overvoltage conditions.
To ensure accurate conversions in noisy environments, use a common mode filter, such as a ferrite bead or a pi-filter, to reduce noise on the analog input lines. Additionally, consider using a shielded enclosure and keeping the ADS7806P away from noise sources.
The ADS7806P requires a two-point calibration procedure to ensure accurate conversions. Calibrate the device at two known input voltages, such as 0V and the maximum input voltage, and store the resulting calibration coefficients in non-volatile memory.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7806P Overview

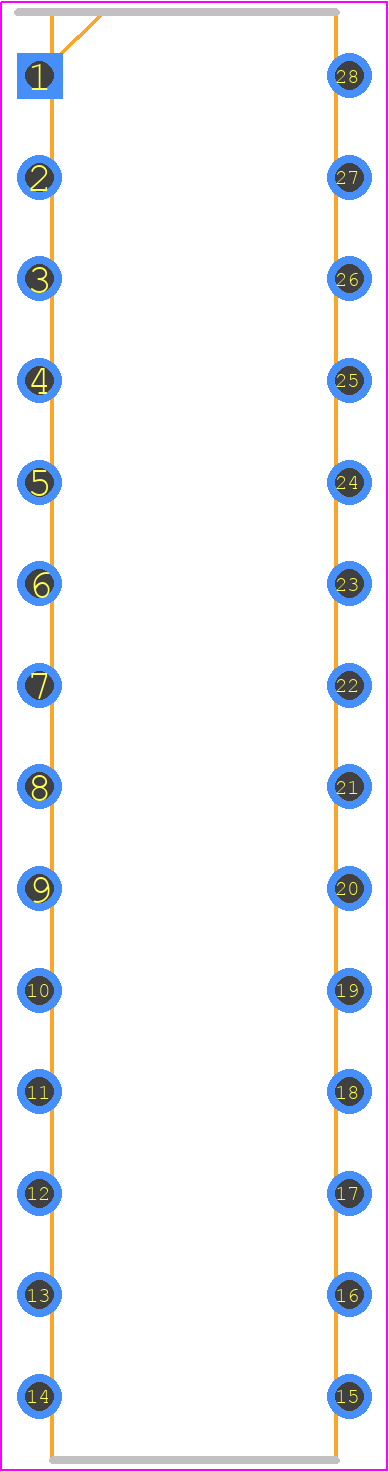

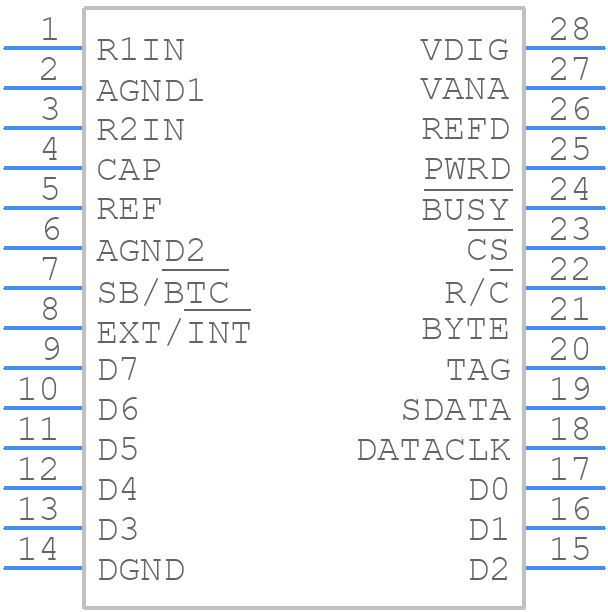

Use the download button to access the ADS7806P schematic symbol, PCB footprint, and 3D model.
