The ADS7806U requires careful layout and routing to minimize noise and ensure accurate conversions. TI recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device.
The ADS7806U requires a high-speed clock input, which can be challenging to handle. TI recommends using a clock source with a low jitter and a high-frequency bypass capacitor (e.g., 100nF) to filter out noise. Additionally, the clock input should be routed close to the device and away from noisy signals.
To ensure proper operation, TI recommends powering up the ADS7806U in the following sequence: VCC, AVCC, and then the clock input. This sequence helps prevent latch-up and ensures that the device is properly initialized.
To optimize the analog input circuitry, TI recommends using a low-pass filter to remove high-frequency noise, and a buffer amplifier to drive the analog input. Additionally, the analog input should be routed close to the device and away from noisy signals.
To synchronize multiple ADS7806U devices, TI recommends using a common clock source and a synchronization signal (e.g., SYNC pin) to ensure that all devices are triggered simultaneously. This helps to minimize skew and ensure accurate conversions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7806U Overview

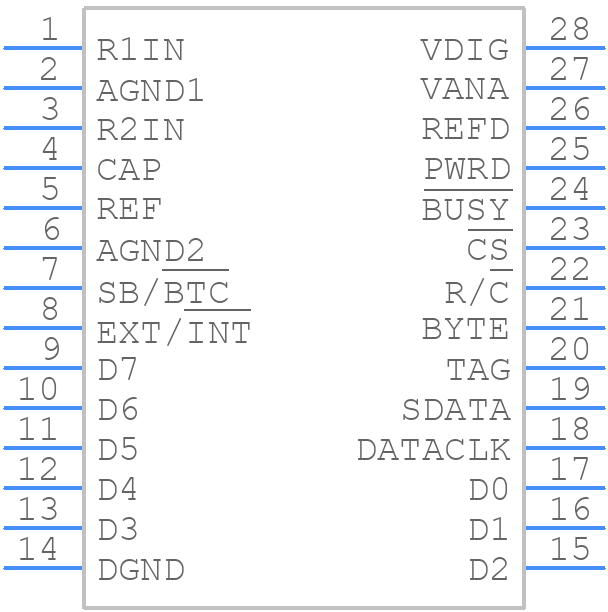

Use the download button to access the ADS7806U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
