ADS7807U/1K - Texas Instruments

Description: Analog to Digital Converters - ADC Low-Power 16-Bit Sampling CMOS

Download ADS7807U/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

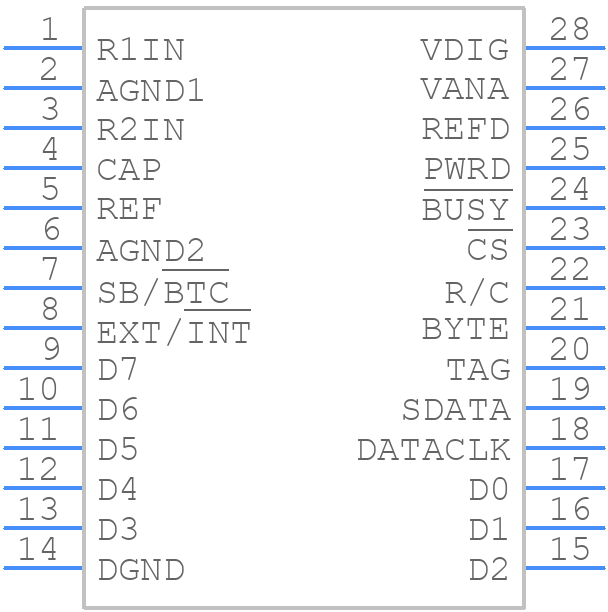

ADS7807U/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7807U/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
ADS7807U/1K - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

ADS7807U/1K Details

  • Manufacturer Part Number:

    ADS7807U/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    4.75 V

  • Conversion Time-Max:

    20 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.04 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADS7807U/1K Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, use short and direct traces for the analog inputs, and keep digital signals away from the analog signals.
  • The ADS7807U/1K requires a high-speed clock signal with a frequency range of 10-50 MHz. The clock source should have a low jitter and a stable frequency. It's recommended to use a dedicated clock source or a high-quality clock buffer to ensure a clean clock signal.
  • Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a total capacitance of at least 10 uF. Additionally, use a ferrite bead or a pi-filter to filter out high-frequency noise on the power supply lines.
  • The ADS7807U/1K has a power-down pin (PD) that should be tied to a digital output or a pull-up resistor. During power-up, ensure the PD pin is high before applying the analog supply voltage. During power-down, ensure the PD pin is low before removing the analog supply voltage.
  • Texas Instruments recommends using a common clock source and a synchronized start-of-conversion signal for all devices. Additionally, use a master-slave configuration where one device is the master and the others are slaves, to ensure synchronized conversions.
