Texas Instruments recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. Use short, direct traces for the analog inputs and outputs, and avoid running digital signals near the analog signals. Additionally, use a common-mode filter capacitor (e.g., 10nF) between the analog input pins and the analog ground plane.
The ADS7812UB/1K has an internal self-calibration mechanism that runs during power-up. To ensure accurate conversions, it's essential to allow the device to complete its self-calibration process. If the device is not calibrated, it may result in inaccurate conversions, increased noise, and reduced linearity. Make sure to follow the recommended power-up sequence and allow the device to complete its self-calibration process before taking measurements.
The ADS7812UB/1K has an input voltage range of 0V to VREF (typically 2.5V or 5V). To handle overvoltage protection, use external resistors and diodes to limit the input voltage to within the specified range. Additionally, consider using a voltage limiter or clamp circuit to protect the device from excessive voltage spikes or transients.
The ADS7812UB/1K has a maximum conversion rate of 250 kSPS. To optimize the conversion speed and throughput, consider the following: use the fastest possible clock frequency (up to 10 MHz), minimize the number of conversions per cycle, and use the internal clock or an external clock with a stable frequency. Additionally, consider using the device's built-in averaging or filtering features to reduce noise and improve conversion accuracy.
The ADS7812UB/1K is specified to operate up to 125°C. When operating in high-temperature environments, consider the following: ensure good thermal dissipation, use a heat sink if necessary, and follow the recommended PCB layout and routing guidelines. Additionally, consider using a temperature sensor to monitor the device temperature and adjust the conversion settings or take corrective action if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7812UB/1K Overview

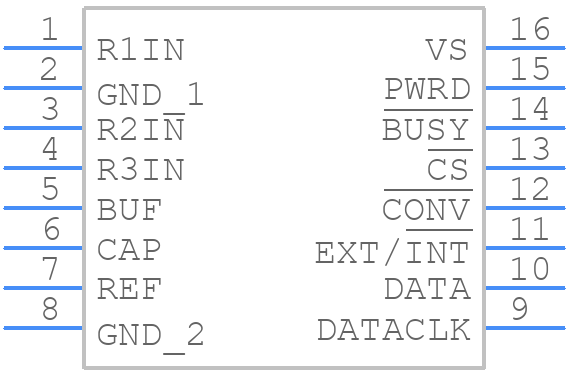

Use the download button to access the ADS7812UB/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
