ADS7816E/2K5G4 - Texas Instruments

Description: Single Channel Single ADC SAR 200ksps 12-bit Serial 8-Pin VSSOP T/R

Download ADS7816E/2K5G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

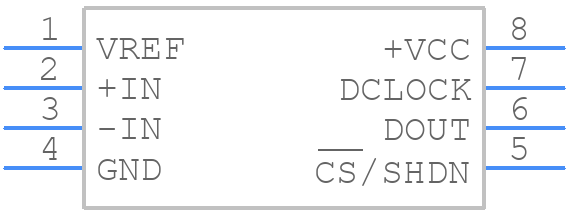

ADS7816E/2K5G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7816E/2K5G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
ADS7816E/2K5G4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

ADS7816E/2K5G4 Details

  • Manufacturer Part Number:

    ADS7816E/2K5G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.75 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS7816E/2K5G4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA554, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces.
  • The ADS7816E/2K5G4 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and reading the output code. The device can then be calibrated using the internal calibration circuit or through external calibration using a microcontroller.
  • The maximum sampling rate of the ADS7816E/2K5G4 is 250 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signal.
  • The ADS7816E/2K5G4 outputs 16-bit digital data in a binary two's complement format. The data can be read using a microcontroller or a digital signal processor, and can be processed using software or hardware algorithms to extract the desired information.
  • The power consumption of the ADS7816E/2K5G4 is typically around 15 mW at a supply voltage of 2.7 V. The power consumption can be reduced by using a lower supply voltage, reducing the sampling rate, or using the device's power-down mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS7816E/2K5G4 Overview

Use the download button to access the ADS7816E/2K5G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78, or try a keyword search, such as Analog to Digital Converters
