Texas Instruments recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and shielded, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
The ADS7816EC/250 has a built-in POR circuit that resets the device when the power supply voltage rises above 1.5V. To ensure proper operation, the power supply voltage should be ramped up slowly (less than 10ms) and the digital interface should be held in a reset state until the power supply is stable. The recommended power-up sequence is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC) and then the clock signal.
The maximum sampling rate of the ADS7816EC/250 is 250kSPS, but it can be adjusted by changing the clock frequency. The power consumption increases with the sampling rate, and the device typically consumes around 15mW at 250kSPS. However, the power consumption can be reduced by using the device's power-down mode or by reducing the sampling rate.
The ADS7816EC/250 has an internal calibration circuit that can be used to calibrate the device. The recommended calibration procedure involves applying a known input voltage and then reading the output code. The gain and offset errors can be calculated and corrected using the device's calibration registers. Texas Instruments also provides a calibration software tool that can be used to simplify the calibration process.
Common sources of error in the ADS7816EC/250 include noise, thermal drift, and non-linearity. These errors can be minimized by using proper PCB layout and routing, shielding the analog inputs, and using a low-noise power supply. Additionally, the device's internal calibration circuit can be used to correct for gain and offset errors, and the device's built-in averaging function can be used to reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7816EC/250 Overview

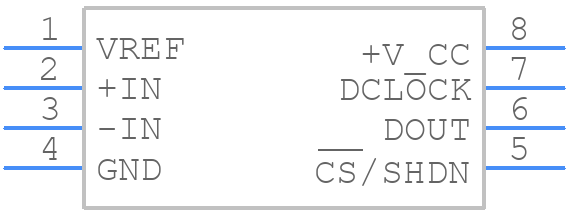

Use the download button to access the ADS7816EC/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
