Texas Instruments recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. Additionally, use short and direct traces for the analog inputs, and avoid running digital signals near the analog inputs.
The gain and offset can be configured using the internal PGA (Programmable Gain Amplifier) and the offset adjustment pin (OS0/OS1). Consult the datasheet for the gain and offset calculation formulas, and use the TI-provided calculation tools or simulation software to determine the optimal settings for your application.
The maximum sampling rate of the ADS7816UB/2K5 is 250 kSPS. However, the actual achievable sampling rate depends on the system clock frequency, conversion mode, and other factors. Higher sampling rates increase power consumption, so it's essential to balance the sampling rate with power consumption requirements.
The internal VREF is suitable for most applications, but if you require a more accurate or adjustable reference voltage, use an external reference voltage (EXTREF) connected to the REF pin. Ensure the external reference voltage is within the specified range (2.5 V ± 10%) and meets the required accuracy and stability requirements.
Select the input range that matches your signal amplitude, and consider the PGA gain settings to optimize the signal-to-noise ratio (SNR). Ensure the input signal is within the specified range (±VREF or ±EXTREF) to avoid clipping or saturation. Use the datasheet's input range and scaling tables to determine the optimal settings for your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7816UB/2K5 Overview

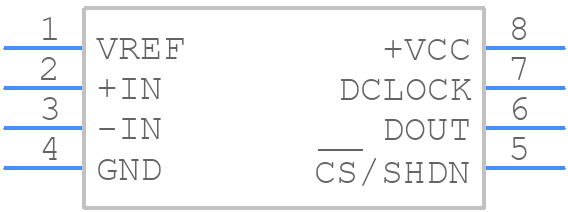

Use the download button to access the ADS7816UB/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
