The ADS7818P requires careful layout and routing to ensure optimal performance. TI recommends using a 4-layer PCB with a solid ground plane, and keeping analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device, and the analog input traces should be kept short and shielded.
The ADS7818P outputs 16-bit data in a serial format. Engineers should use a microcontroller or FPGA to receive and process the data. The data can be clocked out of the device using the SCLK pin, and the SDATA pin outputs the serial data. The data format is MSB-first, and the device outputs a new sample every 1.5 clock cycles.
The ADS7818P can sample at a maximum rate of 250 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the device's settling time.
The ADS7818P does not require calibration in the classical sense. However, engineers may need to perform a system-level calibration to ensure accurate measurements. This can involve adjusting the gain and offset of the analog input signal, as well as compensating for temperature effects.
The ADS7818P has a typical power consumption of 15 mW at 2.7 V and 10 kHz sampling rate. However, the actual power consumption may vary depending on the system's clock frequency, sampling rate, and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7818P Overview

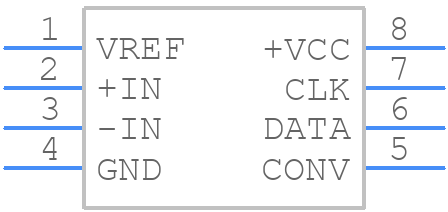

Use the download button to access the ADS7818P schematic symbol, PCB footprint, and 3D model.
