Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, use short and direct traces for the analog inputs, and keep digital signals away from the analog signals.
The ADS7823EB/2K5 has an internal self-calibration mechanism that can be initiated by setting the CAL bit in the control register. Failure to calibrate the ADC can result in reduced accuracy and increased offset errors, which can affect the overall performance of the system.
The ADS7823EB/2K5 can achieve a maximum sampling rate of 250 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signals.
The ADS7823EB/2K5 can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The ADC supports a 3-wire or 4-wire SPI interface, and a 2-wire I2C interface. The communication protocol depends on the specific microcontroller and system requirements.
The ADS7823EB/2K5 has a typical power consumption of 15 mW at 250 kSPS. The ADC has three power-down modes: Nap, Sleep, and Shutdown. To minimize power consumption, use the power-down modes when the ADC is not in use, and optimize the system clock frequency and conversion rate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7823EB/2K5 Overview

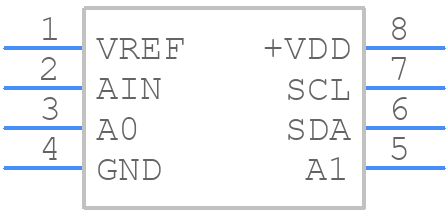

Use the download button to access the ADS7823EB/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
