Texas Instruments provides a recommended layout and routing guide in the application note SLAA384, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS7825PBG4 outputs data in a serial format, and the user needs to implement a serial interface (e.g., SPI) to read the data. The datasheet provides information on the serial interface timing and protocol, and the user can refer to the application note SLAA385 for example code and interface implementation.
The ADS7825PBG4 has a built-in POR circuit that resets the device to its default state when the power supply voltage (VCC) rises above the POR threshold (typically around 1.8V). The POR circuit ensures that the device starts up in a known state, but it may take some time (typically around 10ms) for the device to stabilize after power-on.
The ADS7825PBG4 does not require calibration, as it is a self-calibrating ADC. However, the user may need to perform system-level calibration to account for external factors such as sensor offset and gain errors. The application note SLAA386 provides guidelines for system-level calibration and error correction.
The ADS7825PBG4 has a maximum sampling rate of 250kSPS (kilosamples per second), but the actual sampling rate may be limited by the system clock frequency, the serial interface speed, and the user's application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7825PBG4 Overview

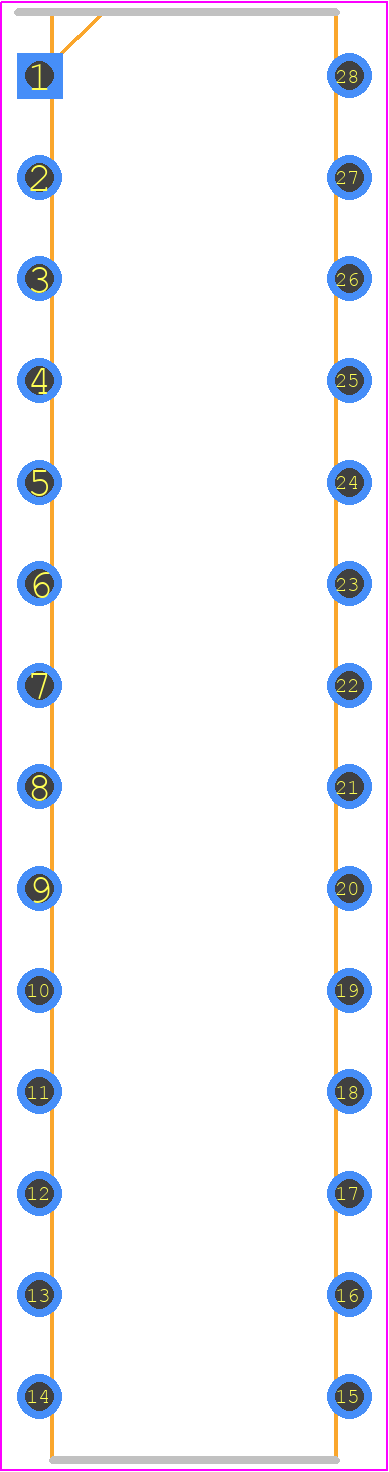

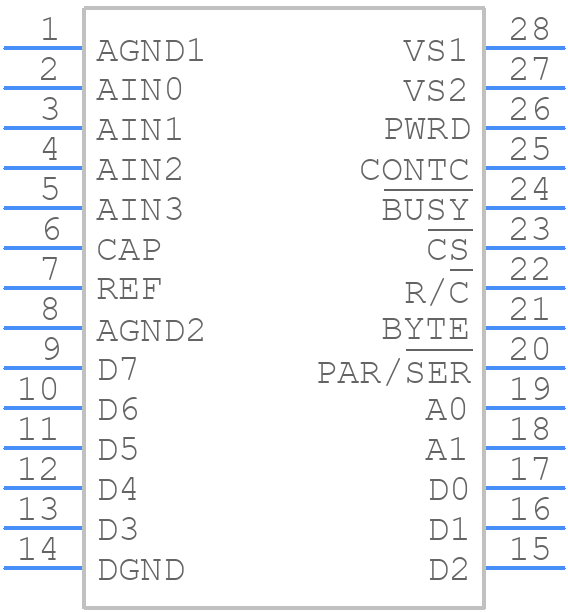

Use the download button to access the ADS7825PBG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
