Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital traces separate. Use a star-grounding scheme and avoid running digital traces near the analog inputs. Also, use a 0.1uF decoupling capacitor between VCC and GND, and a 10uF capacitor between AVCC and AGND.
The ADS7828EIPWRQ1 has a power-on reset (POR) circuit that ensures the device is in a valid state after power-up. However, it's recommended to add an external reset circuit to ensure the device is in a known state after power-up. A 10kΩ pull-up resistor on the RESET pin to VCC, and a 0.1uF capacitor from RESET to GND can be used.
The recommended clock frequency for the ADS7828EIPWRQ1 is between 1MHz and 4MHz. The conversion rate is dependent on the clock frequency, with a maximum conversion rate of 250kSPS at 4MHz. A higher clock frequency can increase the conversion rate, but may also increase power consumption and noise sensitivity.
The ADS7828EIPWRQ1 has a fixed analog input range of 0V to VREF. To ensure accurate conversions, the input signal should be scaled to fit within this range. Use an external amplifier or attenuator to scale the input signal, and ensure the input signal is within the recommended common-mode voltage range of 0.5V to VREF - 0.5V.
The ADS7828EIPWRQ1 has a SYNC pin that can be used to synchronize the device with an external clock or trigger signal. Connect the external clock or trigger signal to the SYNC pin, and ensure the signal is within the recommended voltage range of 0V to VCC. The device will then synchronize its conversions with the external signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7828EIPWRQ1 Overview

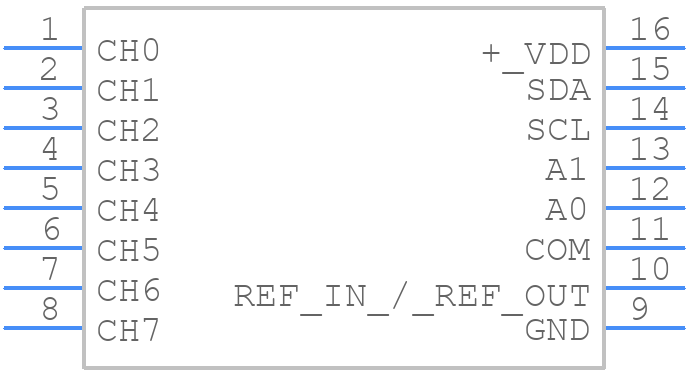

Use the download button to access the ADS7828EIPWRQ1 schematic symbol, PCB footprint, and 3D model.
