Texas Instruments provides a layout and routing guide in the application note SLAA523, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS7863IDBQG4 requires a high-speed clock input, which can be challenging to handle. Texas Instruments recommends using a clock buffer or a dedicated clock generator to ensure a clean and stable clock signal. Additionally, the clock input should be routed as a differential pair to minimize noise and jitter.
The ADS7863IDBQG4 is a high-speed ADC, and it requires a well-filtered analog input signal to achieve optimal performance. Texas Instruments recommends using a low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) to remove high-frequency noise and aliasing. A simple RC filter or a more complex active filter can be used, depending on the specific application requirements.
The ADS7863IDBQG4 requires calibration to ensure accurate conversion results. Texas Instruments provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal performance. Additionally, the device can be calibrated using an external calibration signal or a calibration module.
The ADS7863IDBQG4 is a high-speed ADC that can achieve sampling rates up to 1.5 MSPS. However, the actual sampling rate may be limited by the system clock frequency, the analog input bandwidth, and the digital output data rate. Texas Instruments provides guidelines for achieving the maximum sampling rate in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7863IDBQG4 Overview

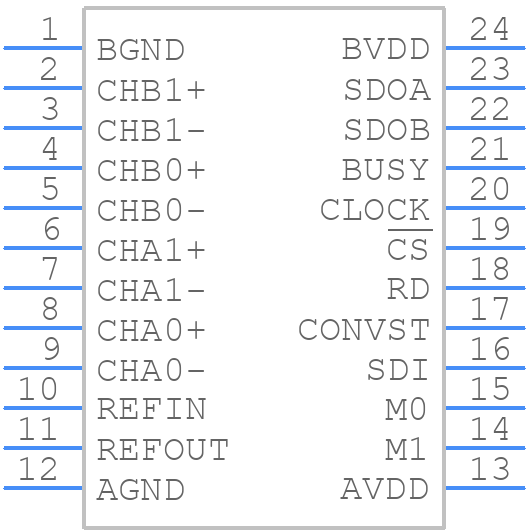

Use the download button to access the ADS7863IDBQG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
