Texas Instruments provides a recommended layout and routing guide in the ADS7863IRGEREVM evaluation module documentation, which can be found on the TI website. It's essential to follow this guide to ensure proper operation and minimize noise and interference.
The ADS7863IRGER requires a high-speed clock signal, which can be challenging to handle. TI recommends using a clock signal with a rise time of less than 1ns and a frequency of 10-40 MHz. Additionally, it's essential to use a clock buffer or repeater to ensure signal integrity and reduce jitter.
TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling. A 10uF ceramic capacitor should be placed close to the device, and a 10uF electrolytic capacitor should be placed further away. Additionally, a 0.1uF ceramic capacitor should be placed between the AVDD and DVDD pins.
To ensure accurate conversion results, it's essential to follow the recommended analog input signal conditioning and filtering guidelines. Additionally, the device should be operated within the recommended temperature range, and the power supply should be clean and stable. It's also important to calibrate the device using the built-in calibration feature.
The ADS7863IRGER can operate at a maximum sampling rate of 250 kSPS. However, the actual sampling rate may be limited by the system's analog input signal bandwidth, the clock frequency, and the device's internal settling time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7863IRGER Overview

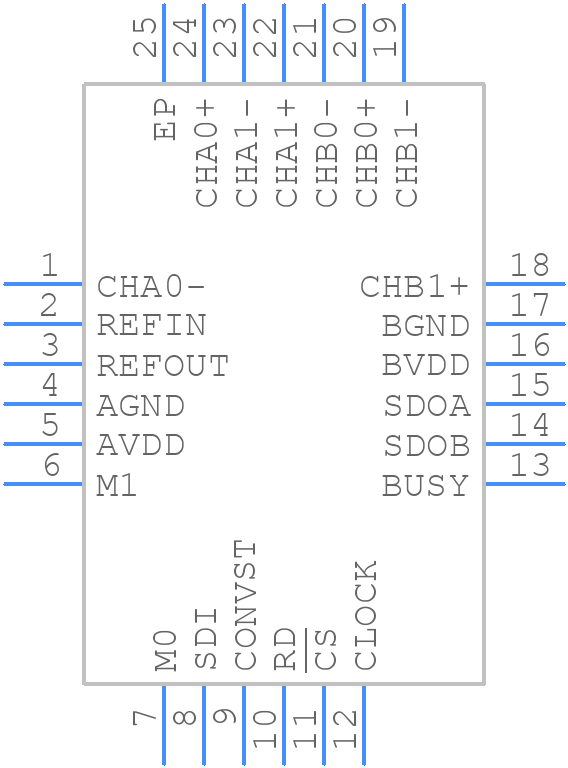

Use the download button to access the ADS7863IRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
