Part Image

ADS7865IPBSR - Texas Instruments

Description: Dual, 2MSPS, 12-Bit, 3+3 or 2+2 Channel, Simultaneous Sampling ADC

Download ECAD Model

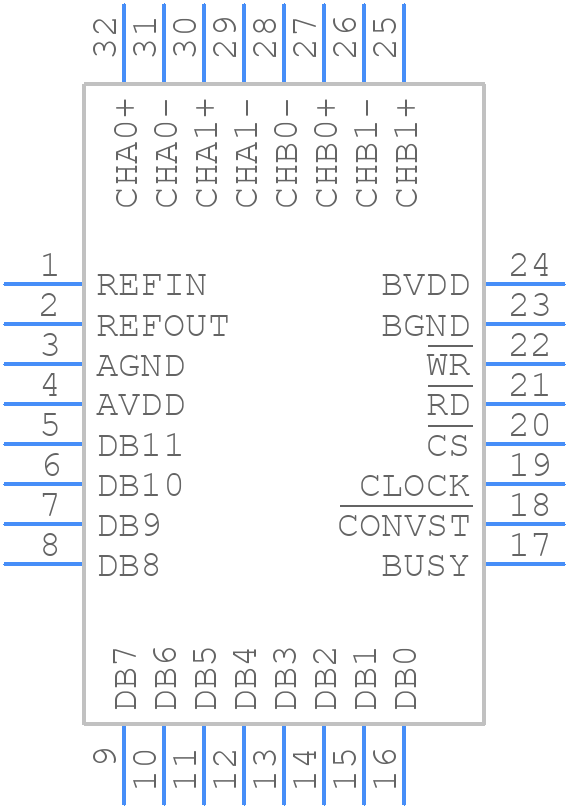

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

ADS7865IPBSR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom

3D Models

ADS7865IPBSR - Texas Instruments  - 3D model - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom

ADS7865IPBSR Details

  • Manufacturer Part Number:

    ADS7865IPBSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TFQFP, TQFP32,.28SQ

  • Pin Count:

    32

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.16

  • Samacsys Modified On:

    2021-08-02 16:02:48

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Conversion Time-Max:

    0.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    6

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    5 V

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.05 mm

  • Subcategory:

    Analog to Digital Converters

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

ADS7865IPBSR Overview

Use the download button to access the ADS7865IPBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78, or try a keyword search, such as Analog to Digital Converters

Parts related to ADS7865IPBSR

Showing 0 results

ADS7865IPBSR Alternates

Showing results

Image Part Number Model
Part Image ADS7865IPBS Texas Instruments

Dual, 2MSPS, 12-Bit, 3+3 or 2+2 Channel, Simultaneous Sampling ADC 32-TQFP -40 to 125

Part Image ADS7865IPBSG4 Texas Instruments

Dual, 2MSPS, 12-Bit, 3+3 or 2+2 Channel, Simultaneous Sampling ADC 32-TQFP -40 to 125

Part Image ADS7865IPBSRG4 Texas Instruments

DUAL 2-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PQFP32, GREEN, PLASTIC, TQFP-32
