ADS7866IDBVRG4 - Texas Instruments

Description: Single Channel Single ADC SAR 200ksps 12-bit Serial 6-Pin SOT-23 T/R

Download ADS7866IDBVRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

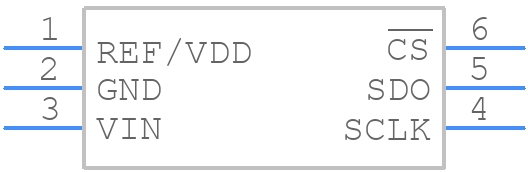

ADS7866IDBVRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7866IDBVRG4 - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DBV0006A
click to zoom
3D Models
ADS7866IDBVRG4 - Texas Instruments - 3D model - SOT23 (6-Pin) - DBV0006A
click to zoom

ADS7866IDBVRG4 Details

  • Manufacturer Part Number:

    ADS7866IDBVRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Package Description:

    LSSOP-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    1.2 V

  • Conversion Time-Max:

    5.294 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

ADS7866IDBVRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which recommends keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and loops.
  • The ADS7866IDBVRG4 has various operating modes and settings that can be optimized for specific applications. Refer to the device's user guide and application notes for guidance on selecting the optimal settings for your application.
  • The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. The power-down sequence should be reversed. Refer to the datasheet for specific timing requirements.
  • The ADS7866IDBVRG4 outputs 16-bit binary data. The user guide and application notes provide information on how to format and scale the output data to match the specific requirements of your application.
  • The ADS7866IDBVRG4 has a maximum junction temperature of 150°C. Ensure good thermal design and heat dissipation in your system to prevent overheating. Refer to the datasheet for thermal resistance and power dissipation information.
