Texas Instruments provides a layout and routing guide in the ADS7866 application note (SLAA544) that recommends a star-ground configuration, separate analog and digital grounds, and careful routing of sensitive analog signals to minimize noise and ensure accurate conversions.
Texas Instruments provides an ADC performance optimization guide in the ADS7866 application note (SLAA544) that includes guidelines for selecting the right gain and offset settings, as well as tips for optimizing the ADC's performance for specific applications such as industrial automation, medical devices, and automotive systems.
The ADS7866IDBVTG4 has a maximum junction temperature of 150°C, and it is recommended to keep the device within a safe operating temperature range of -40°C to 125°C. Thermal considerations include providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Texas Instruments provides thermal design guidelines in the ADS7866 datasheet and application note (SLAA544).
The ADS7866IDBVTG4 can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. Texas Instruments provides example code and interface guidelines in the ADS7866 application note (SLAA544) and software development kits (SDKs) for popular microcontrollers and FPGAs.
The ADS7866IDBVTG4 is designed to meet electromagnetic compatibility (EMC) and electromagnetic interference (EMI) regulatory standards such as CISPR 22 and FCC Part 15. Texas Instruments provides EMC and EMI guidelines in the ADS7866 application note (SLAA544) and recommends following good design practices such as using shielding, filtering, and grounding to minimize EMI and ensure compliance with regulatory standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7866IDBVTG4 Overview

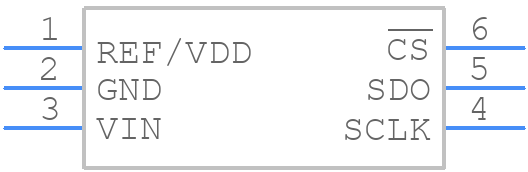

Use the download button to access the ADS7866IDBVTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
