ADS7868IDBVT - Texas Instruments

Description: 1.2V, 8 bit 280KSPS, Serial ADC

Download ADS7868IDBVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

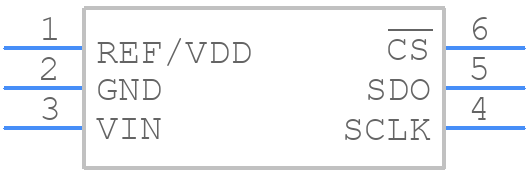

Symbol
ADS7868IDBVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7868IDBVT - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DBV (R-PDSO-G6)
click to zoom
3D Models
ADS7868IDBVT - Texas Instruments - 3D model - SOT23 (6-Pin) - DBV (R-PDSO-G6)
click to zoom

ADS7868IDBVT Details

  • Manufacturer Part Number:

    ADS7868IDBVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Package Description:

    LSSOP-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    5.294 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.28 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

ADS7868IDBVT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS7868IDBVT evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure proper operation and minimize noise and interference.
  • The ADS7868IDBVT requires a high-speed clock input, which can be challenging to handle. It's recommended to use a clock buffer or a dedicated clock generator to ensure a clean and stable clock signal. Additionally, the clock signal should be routed close to the device and away from noisy signals.
  • The ADS7868IDBVT has a high-speed analog-to-digital converter, which can be sensitive to noise and interference. It's recommended to use a low-pass filter or a band-pass filter to remove high-frequency noise and aliasing. The filter design should be based on the specific application requirements and the frequency range of interest.
  • The ADS7868IDBVT requires a stable power supply and proper decoupling to ensure proper operation. It's recommended to use a low-noise power supply, and to decouple the power pins with high-quality capacitors (e.g., 0.1uF and 10uF) as close to the device as possible.
  • The ADS7868IDBVT can achieve a maximum sampling rate of 1.5 MSPS (mega-samples per second) in single-channel mode, and 750 kSPS in dual-channel mode. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital interface.
