Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
To prevent EMI, it is recommended to use a low-inductance path for the digital outputs, such as a microstrip or stripline. Additionally, a series termination resistor can be used to reduce the output signal swing and minimize EMI. It is also recommended to use a shielded cable or a twisted pair for the digital output signals.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). The digital power supply should be applied after the analog power supply has reached its nominal value. This sequence helps to prevent latch-up or damage to the device.
The ADS7882IPFBR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal accuracy. The calibration process should be performed at the operating temperature range of the device.
The recommended clock frequency for the ADS7882IPFBR is between 1 MHz and 20 MHz. The clock frequency affects the device's conversion rate, power consumption, and noise performance. A higher clock frequency can result in a higher conversion rate, but may also increase power consumption and noise. A lower clock frequency can result in lower power consumption, but may also reduce the conversion rate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7882IPFBR Overview

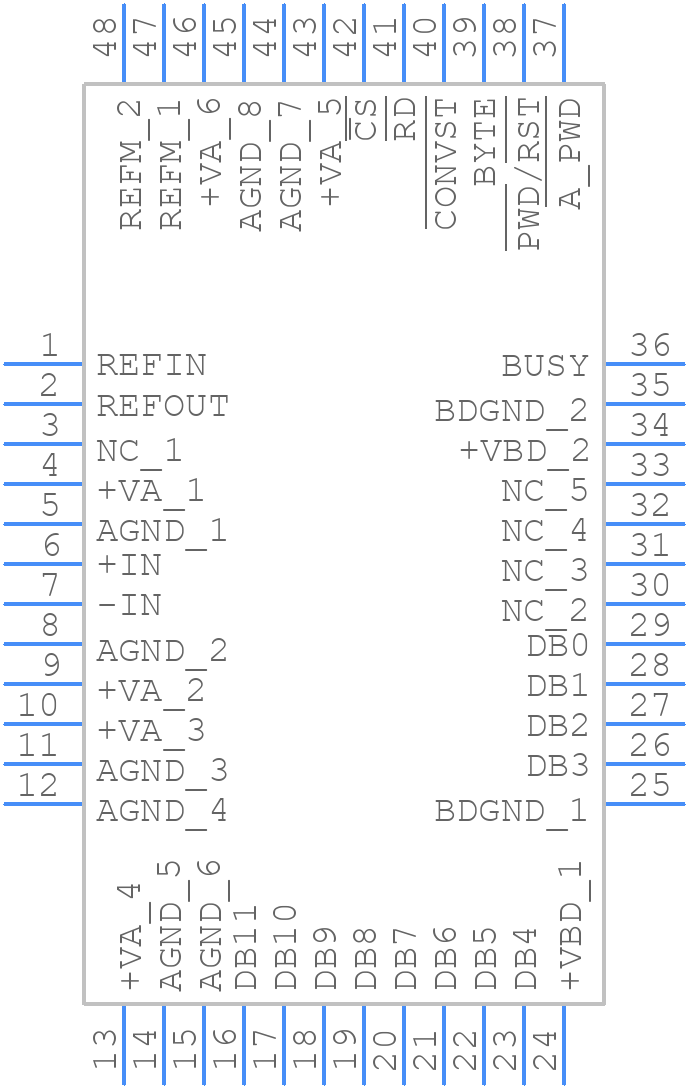

Use the download button to access the ADS7882IPFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
