Texas Instruments provides a recommended layout and routing guide in the ADS7891IPFBT evaluation module documentation, which includes guidelines for placing components, routing traces, and minimizing noise and interference.
The ADS7891IPFBT has high-speed digital outputs that require careful handling to avoid signal degradation and noise. Engineers should use controlled impedance traces, terminate the lines properly, and use signal integrity analysis tools to ensure reliable data transmission.
The ADS7891IPFBT has a high-impedance analog input, and filtering is recommended to remove noise and aliasing. A low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) is recommended, and the filter design should consider the signal bandwidth, noise levels, and component tolerances.
The ADS7891IPFBT requires accurate timing and synchronization to ensure reliable data conversion. Engineers should use a stable clock source, ensure proper clock routing and termination, and consider using a clock jitter cleaner or PLL to minimize clock noise and skew.
The ADS7891IPFBT has a maximum junction temperature of 125°C, and thermal management is critical to ensure reliable operation. Engineers should consider heat sinking, thermal vias, and airflow to keep the device within the recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7891IPFBT Overview

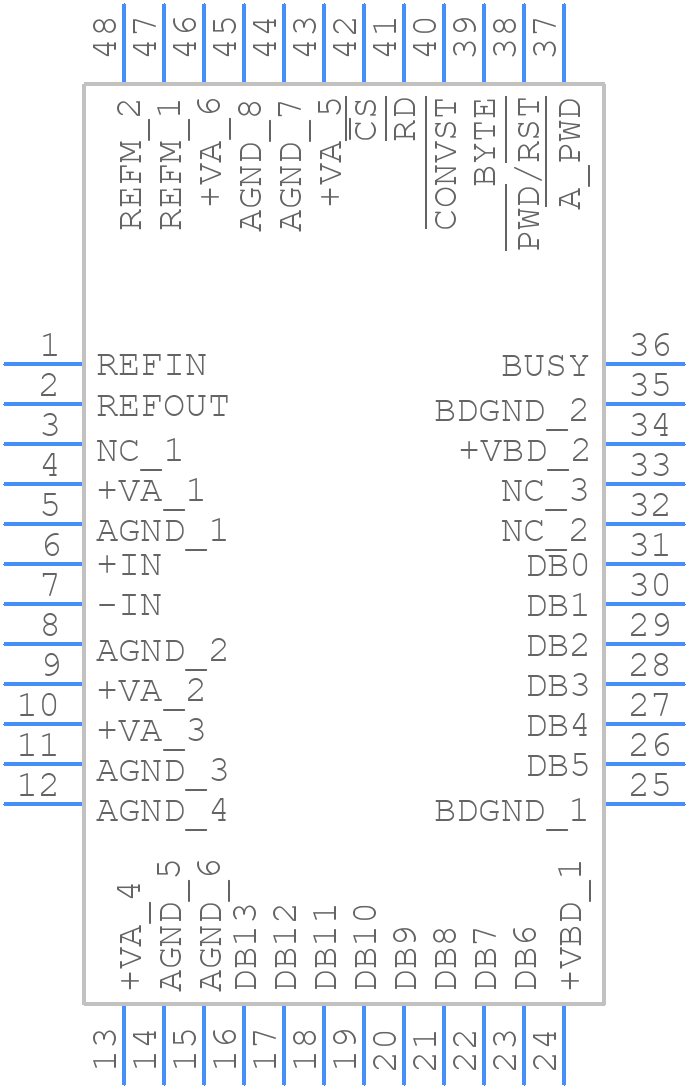

Use the download button to access the ADS7891IPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
