The ADS7945SRTET requires careful layout and routing to achieve optimal performance. TI recommends using a 4-layer PCB with a solid ground plane, and keeping the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and optimize the analog input filtering. Additionally, ensure the power supply is clean and well-regulated, and consider using a dedicated analog power supply if necessary.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent digital noise from affecting the analog performance.
The ADS7945SRTET outputs 16-bit data in a serial format. The microcontroller or FPGA should be configured to receive the serial data and convert it to a usable format. Consider using a SPI or I2S interface to receive the data, and ensure the receiving device is clocked at a rate that is at least twice the ADC's sampling rate.
The ADS7945SRTET can achieve a maximum sampling rate of 1.5 MSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital output data rate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7945SRTET Overview

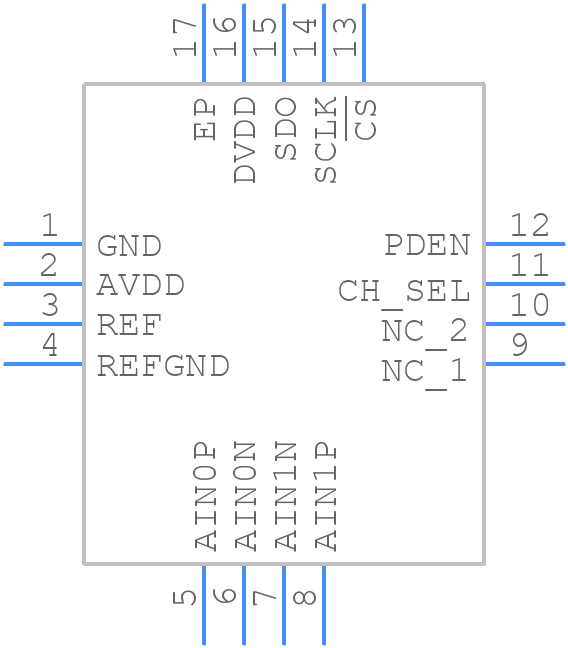

Use the download button to access the ADS7945SRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
