The recommended layout and routing for the ADS7950SBRGER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS7950SBRGER in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the analog and digital grounds are properly separated and decoupled.
The maximum sampling rate of the ADS7950SBRGER is 1.5 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signal.
The ADS7950SBRGER does not require calibration in the classical sense. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within the specified accuracy. This can be done by applying a known input voltage and measuring the output code to determine the gain and offset errors.
The power consumption of the ADS7950SBRGER depends on the operating mode and the clock frequency. In normal operation, the typical power consumption is around 35 mW at 1.5 MSPS. In power-down mode, the typical power consumption is around 10 μW.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7950SBRGER Overview

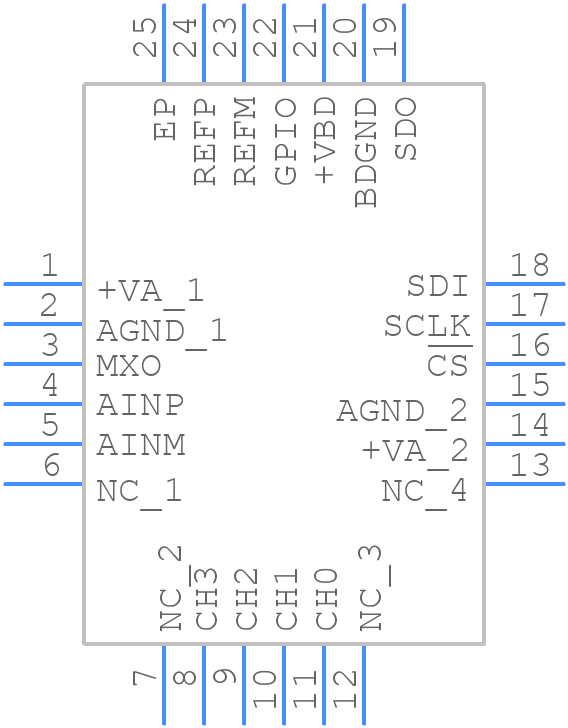

Use the download button to access the ADS7950SBRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
