Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device to filter out noise.
The ADS7950SRGER does not require calibration, as it is a ratiometric ADC that uses an internal reference voltage. However, it is recommended to perform a system-level calibration to account for any gain or offset errors in the system. This can be done by applying a known input voltage and measuring the output code, and then adjusting the system accordingly.
The maximum sampling rate of the ADS7950SRGER is 1 MSPS. To achieve this rate, the device should be operated in the fastest conversion mode (Mode 0), and the clock frequency should be set to 20 MHz or higher. Additionally, the input signals should be properly filtered and settled before conversion to ensure accurate readings.
The ADS7950SRGER outputs 16-bit digital data in a serial format. The output data is in two's complement format, with the most significant bit (MSB) first. The device also provides a data ready signal (DRDY) to indicate when the conversion is complete and the data is ready to be read.
The power consumption of the ADS7950SRGER is typically around 15 mW at a clock frequency of 20 MHz. To minimize power consumption, the device can be operated at a lower clock frequency, and the power-down mode can be used when the device is not in use. Additionally, the device can be operated in a low-power mode (Mode 1) which reduces the power consumption to around 5 mW.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7950SRGER Overview

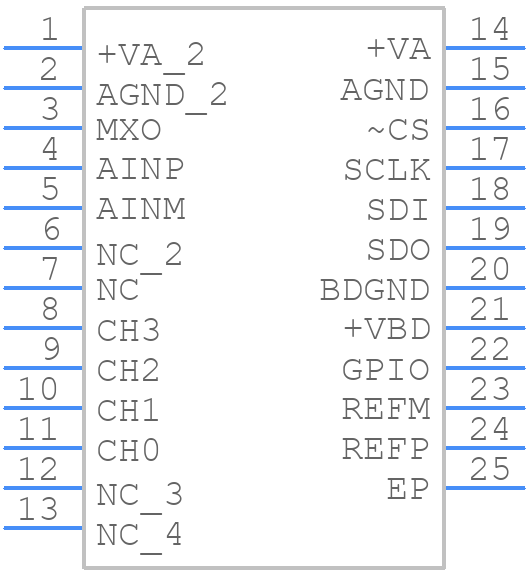

Use the download button to access the ADS7950SRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
