Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
The ADS7952QDBTRQ1 has an internal calibration circuit that is performed at power-up. However, it is recommended to perform an external calibration using an external voltage reference and a calibration signal to ensure optimal performance. The calibration procedure is described in the datasheet.
The maximum sampling rate of the ADS7952QDBTRQ1 is 2 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital output data rate.
The ADS7952QDBTRQ1 outputs 16-bit digital data in a serial format. The data can be handled using a microcontroller or an FPGA, and can be processed using software or hardware. The datasheet provides information on the digital output format and timing.
The power consumption of the ADS7952QDBTRQ1 is typically 35 mW at 2.7 V and 1 MSPS. To minimize power consumption, the device can be operated at a lower clock frequency, and the power-down mode can be used when the device is not in use. Additionally, the analog input range can be reduced to minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7952QDBTRQ1 Overview

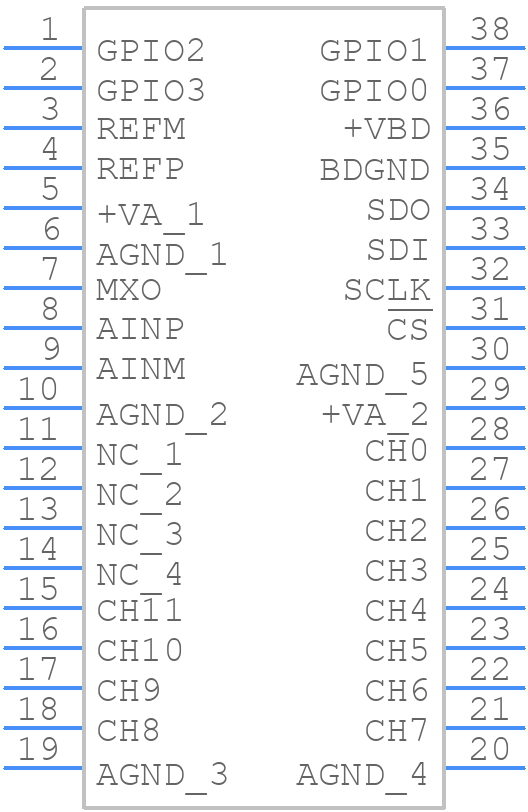

Use the download button to access the ADS7952QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
