The recommended layout and routing for the ADS7952SRHBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS7952SRHBT in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are properly separated and that the power supply is well-regulated.
The maximum sampling rate of the ADS7952SRHBT is 2 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the digital interface used.
The ADS7952SRHBT does not require calibration. It has an internal calibration circuit that ensures accurate conversions. However, it's recommended to perform a system-level calibration to account for any system-specific errors or offsets.
The power consumption of the ADS7952SRHBT depends on the operating mode and the clock frequency. In normal operation, the typical power consumption is around 35 mW at 2.7 V and 10 MSPS. In power-down mode, the typical power consumption is around 1.5 mW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7952SRHBT Overview

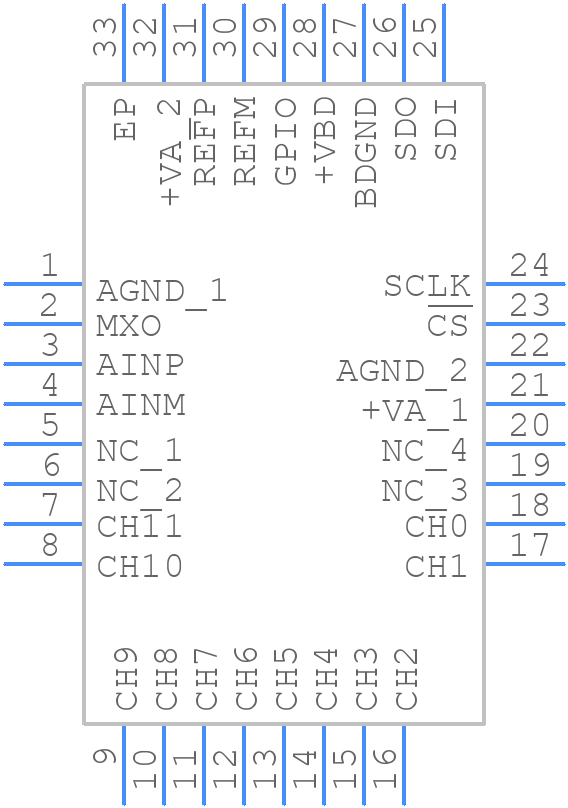

Use the download button to access the ADS7952SRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
