Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
The ADS7953QDBTRQ1 has an internal calibration circuit that is performed at power-up. However, it is recommended to perform an external calibration using an external voltage reference and a calibration signal to ensure optimal performance. The calibration process should be performed at the operating temperature range of the device.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the internal voltage regulators are properly enabled and the device is configured correctly.
The ADS7953QDBTRQ1 outputs data in a serial format, and it is recommended to use a FIFO or a buffer to handle the data transmission. The data should be clocked out of the device using the SCLK signal, and the data should be latched on the rising edge of the SCLK signal.
The ADS7953QDBTRQ1 has a maximum junction temperature of 150°C. To prevent overheating, it is recommended to provide adequate airflow around the device, and to use a heat sink or thermal pad if necessary. The device should be mounted on a PCB with a thermal via to dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7953QDBTRQ1 Overview

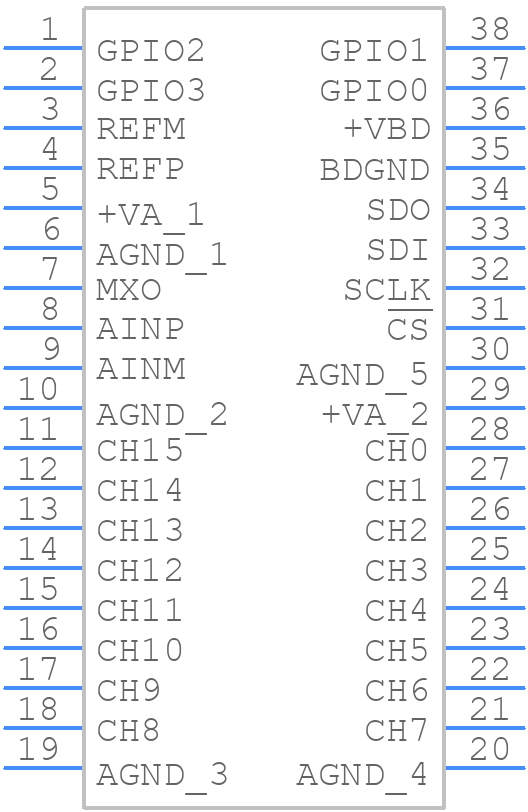

Use the download button to access the ADS7953QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
