ADS7953SBRHBT - Texas Instruments

Description: 12/10/8-Bit, 1 MSPS, 16/12/8/4-Channel, Single-Ended, MicroPower, Serial Interface ADCs

Download ADS7953SBRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

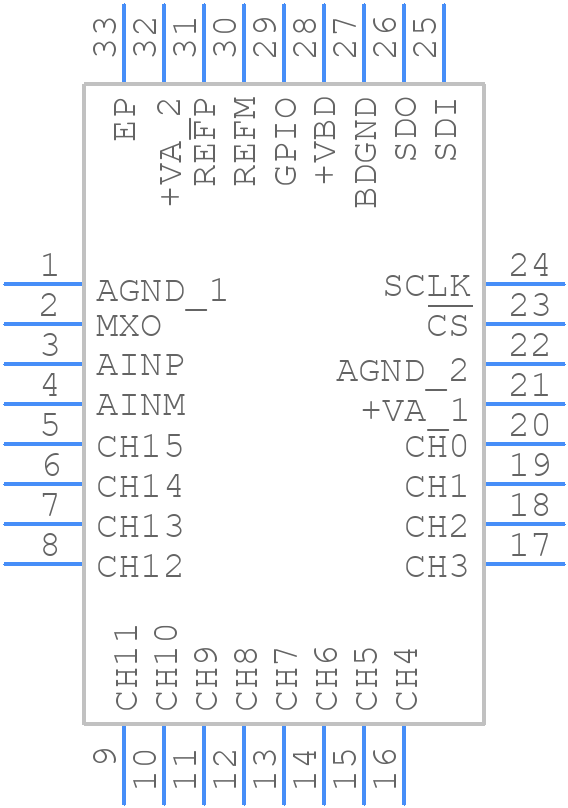

Symbol
ADS7953SBRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7953SBRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom
3D Models
ADS7953SBRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom

ADS7953SBRHBT Details

  • Manufacturer Part Number:

    ADS7953SBRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS7953SBRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital traces separate. Additionally, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the REF pin. Route the analog input traces away from the digital traces and avoid crossing them over.
  • The ADS7953SBRHBT has a power-on reset (POR) circuit that ensures the device is in a valid state after power-up. However, it's recommended to add an external reset circuit to ensure the device is in a valid state after power-up. A 10kΩ pull-up resistor on the RESET pin to AVDD and a 0.1uF capacitor from RESET to GND can be used.
  • The recommended clock frequency for the ADS7953SBRHBT is between 10MHz to 20MHz. The conversion rate is dependent on the clock frequency, with a higher clock frequency resulting in a faster conversion rate. However, a higher clock frequency also increases the power consumption.
  • The ADS7953SBRHBT outputs 16-bit data in a serial format. The output data is in two's complement format, with the most significant bit (MSB) first. The data is output on the DOUT pin, and the data is valid on the falling edge of the SCLK pin.
  • The recommended input signal range for the ADS7953SBRHBT is between 0V to VREF (2.5V or 5V). The input signal range affects the conversion accuracy, with a smaller input range resulting in higher accuracy. However, a smaller input range also reduces the dynamic range of the converter.
