The ADS7953SDBT requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends using a 4-layer PCB with a solid ground plane, separating analog and digital signals, and using shielded cables for analog inputs. Additionally, decoupling capacitors should be placed close to the device, and the analog and digital power supplies should be separated.
To optimize the ADS7953SDBT's performance, consider the following: choose the correct input range and gain setting, select the optimal clock frequency, and adjust the conversion rate to match your application's requirements. Additionally, consider using the device's built-in calibration features and adjusting the internal reference voltage to optimize performance.
The ADS7953SDBT is specified to operate from -40°C to 125°C. However, high temperatures can affect the device's accuracy, noise performance, and long-term reliability. Ensure that your design takes into account the device's temperature coefficient, and consider using thermal management techniques such as heat sinks or thermal interfaces to maintain a stable temperature.
To ensure EMC and reduce EMI, follow proper PCB design and layout practices, such as using a solid ground plane, separating analog and digital signals, and using shielded cables for analog inputs. Additionally, consider using EMI filters, shielding, and grounding techniques to minimize radiation and susceptibility.
The ADS7953SDBT requires a specific power sequencing to ensure proper operation. The device's power supplies (AVDD, DVDD, and IOVDD) should be powered up and down in a specific sequence to prevent latch-up and ensure reliable operation. Consult the datasheet and application notes for specific guidance on power sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7953SDBT Overview

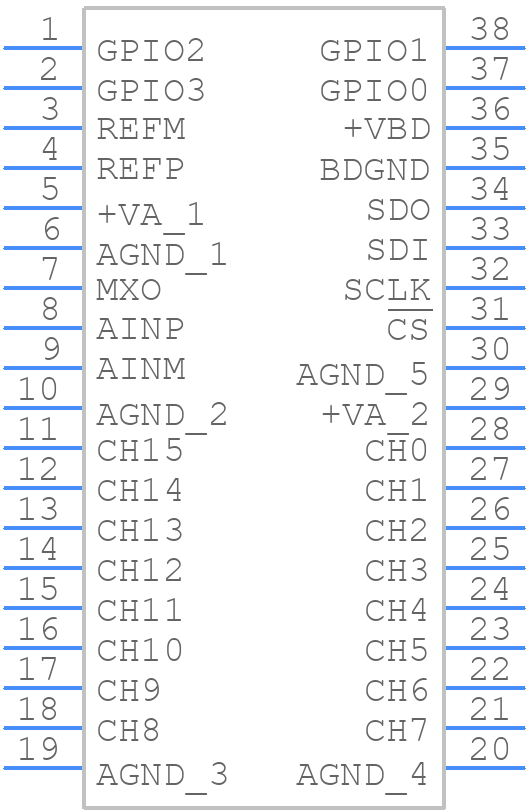

Use the download button to access the ADS7953SDBT schematic symbol, PCB footprint, and 3D model.
