Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device to filter out noise.
To prevent EMI, it is recommended to use a low-inductance path for the digital outputs, such as a microstrip or stripline. Additionally, a series termination resistor can be used to reduce the output signal swing and minimize radiation. It is also recommended to use a shielded cable or a twisted pair to connect the digital outputs to the receiving device.
The maximum sampling rate of the ADS7954SRGER is 2 MSPS. However, the power consumption increases with the sampling rate. At 2 MSPS, the power consumption is approximately 35 mW. To reduce power consumption, the sampling rate can be reduced, but this may affect the accuracy of the conversions.
The ADS7954SRGER has an internal calibration circuit that can be used to calibrate the device. The calibration procedure involves applying a known input voltage and measuring the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
The ADS7954SRGER is specified to operate over a temperature range of -40°C to 125°C. However, the accuracy and performance of the device can be affected by temperature. The device's offset and gain errors can increase with temperature, and the conversion rate may also be affected. It is recommended to use temperature compensation techniques, such as using a temperature sensor and adjusting the offset and gain registers accordingly, to maintain accuracy over the operating temperature range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7954SRGER Overview

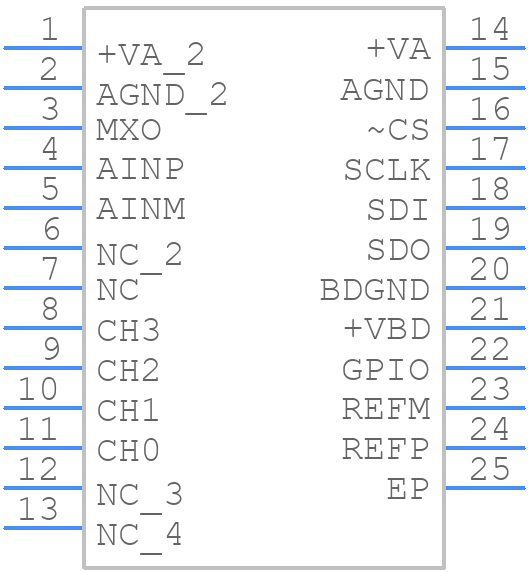

Use the download button to access the ADS7954SRGER schematic symbol, PCB footprint, and 3D model.
