Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
The ADS7955SRGER has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
The maximum sampling rate of the ADS7955SRGER is 2 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the interface mode. The device's datasheet provides more information on the sampling rate and the factors that affect it.
Yes, the ADS7955SRGER can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be connected to a single microcontroller or DSP. The devices can be addressed individually using the chip select (CS) pin, and the data can be read from each device sequentially. Texas Instruments provides application notes and example code for multi-channel applications.
The power consumption of the ADS7955SRGER depends on the operating mode, the sampling rate, and the supply voltage. The device's datasheet provides a detailed power consumption table. To minimize power consumption, the device can be operated in the low-power mode, the sampling rate can be reduced, and the supply voltage can be lowered. Additionally, the device's power-down mode can be used to reduce power consumption when the device is not in use.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7955SRGER Overview

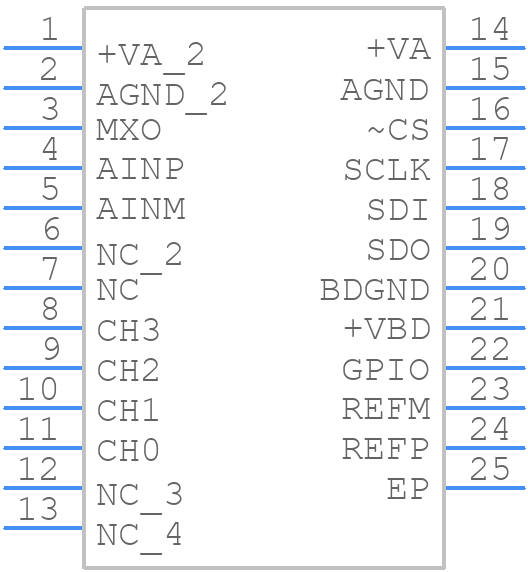

Use the download button to access the ADS7955SRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
