ADS7959SDBT - Texas Instruments

Description: 8 bit, 1 MSPS, 8 Ch, Single Ended, Micro Power, sr i/f, SAR ADC

Download ADS7959SDBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

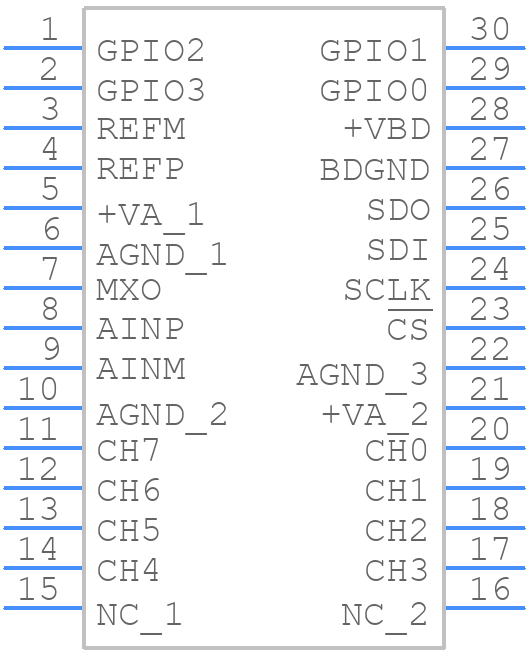

ADS7959SDBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7959SDBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0030A
click to zoom
3D Models
ADS7959SDBT - Texas Instruments - 3D model - Small Outline Packages - DBT0030A
click to zoom

ADS7959SDBT Details

  • Manufacturer Part Number:

    ADS7959SDBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    30

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.1172%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    8

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS7959SDBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS7959SDBT evaluation module user's guide (SLAU445). It's essential to follow this guide to minimize noise, ensure signal integrity, and achieve optimal performance.
  • The ADS7959SDBT has an internal calibration circuit that can be used to calibrate the device. Refer to the calibration procedure outlined in the datasheet (section 8.3.1) and the application note 'ADS7959 Calibration and Verification' (SLAA642).
  • The maximum sampling rate of the ADS7959SDBT is 2 MSPS. To achieve this rate, you need to configure the device in the 'Fast' mode (CLKDIV = 0) and use an external clock source. Refer to the datasheet (section 7.3.1) for more information on clocking and sampling rate configuration.
  • The ADS7959SDBT outputs 16-bit digital data in a binary two's complement format. The output data is available on the DOUT pin and is clocked out on the rising edge of the SCLK pin. You can use a microcontroller or FPGA to handle the digital output data and perform further processing or analysis.
  • The power consumption of the ADS7959SDBT depends on the operating mode and sampling rate. In the 'Normal' mode, the typical power consumption is around 15 mW. To reduce power consumption, you can use the 'Low-Power' mode (PDWN = 1), which reduces the power consumption to around 5 mW. Additionally, you can use the 'Shutdown' mode (SD = 1) to further reduce power consumption to around 1 μW.
