The recommended layout and routing for the ADS7960SRHBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS7960SRHBT in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the digital noise is not coupled to the analog circuitry.
The maximum sampling rate that can be achieved with the ADS7960SRHBT is 500 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
The ADS7960SRHBT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal performance. The calibration process should be performed at the operating temperature range of the device.
The power consumption of the ADS7960SRHBT depends on the operating mode and the clock frequency. In normal operating mode, the power consumption is typically around 35 mW at 3.3 V and 10 MHz clock frequency. In power-down mode, the power consumption is typically around 10 μW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7960SRHBT Overview

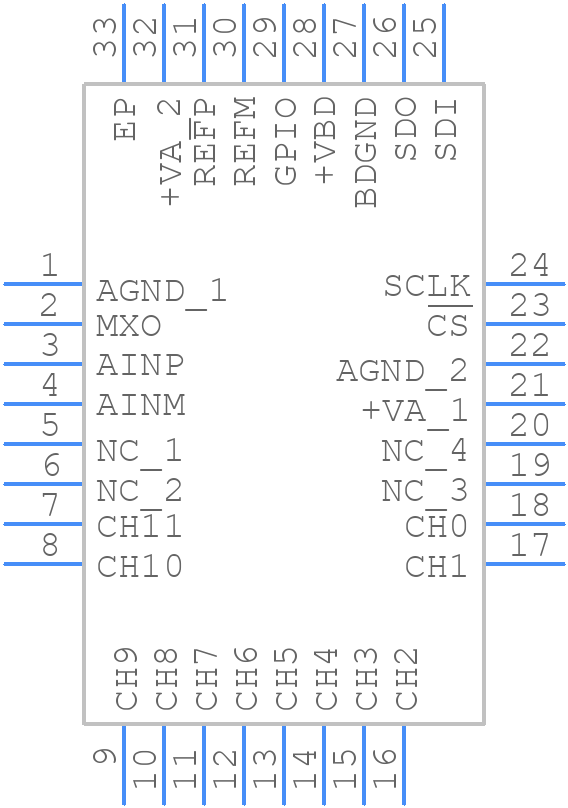

Use the download button to access the ADS7960SRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
