The recommended layout and routing for the ADS7961SRHBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS7961SRHBT in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are properly separated and that the power supply is well-regulated.
The maximum sampling rate of the ADS7961SRHBT is 100 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the desired signal-to-noise ratio.
The ADS7961SRHBT does not require calibration. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within the desired specifications. This can be done by applying a known input signal and adjusting the system's gain and offset to achieve the desired accuracy.
The power consumption of the ADS7961SRHBT depends on the operating frequency, voltage supply, and other factors. Typically, the power consumption is around 15 mW at 3.3 V and 100 kSPS. However, it's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7961SRHBT Overview

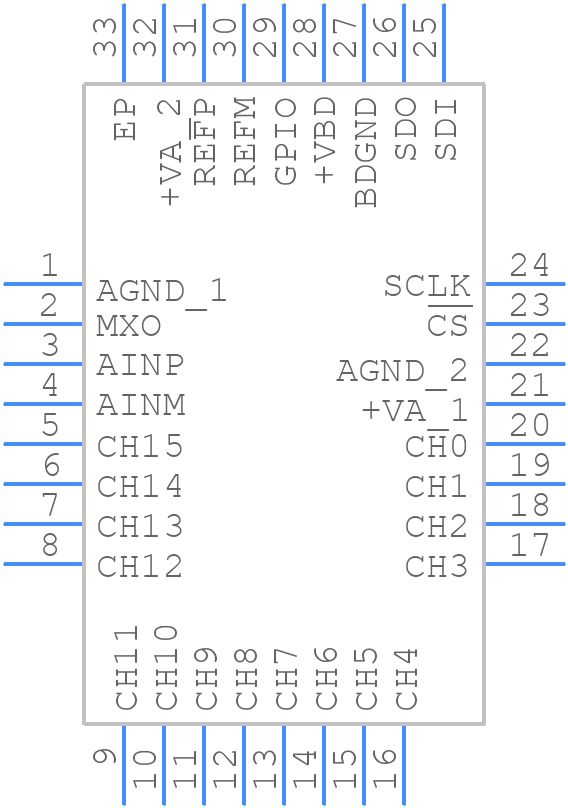

Use the download button to access the ADS7961SRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
