The recommended layout and routing for the ADS8166IRHBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also important to keep the clock and digital signals away from the analog inputs.
To optimize the performance of the ADS8166IRHBT in terms of noise reduction, use a low-noise power supply, decouple the power pins with capacitors, and use a low-pass filter on the analog input signals. Additionally, ensure that the PCB layout is designed to minimize electromagnetic interference (EMI).
The maximum sampling rate of the ADS8166IRHBT is 500 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other factors.
The ADS8166IRHBT has a programmable gain amplifier (PGA) that can be configured through the SPI interface. The gain settings can be programmed using the PGA gain register (address 0x10) and the PGA bypass register (address 0x11). Refer to the datasheet for the specific register settings and programming sequence.
The power consumption of the ADS8166IRHBT depends on the operating mode and clock frequency. In normal operation, the device consumes around 35 mW. To reduce power consumption, use the power-down mode, reduce the clock frequency, and minimize the number of conversions per second.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8166IRHBT Overview

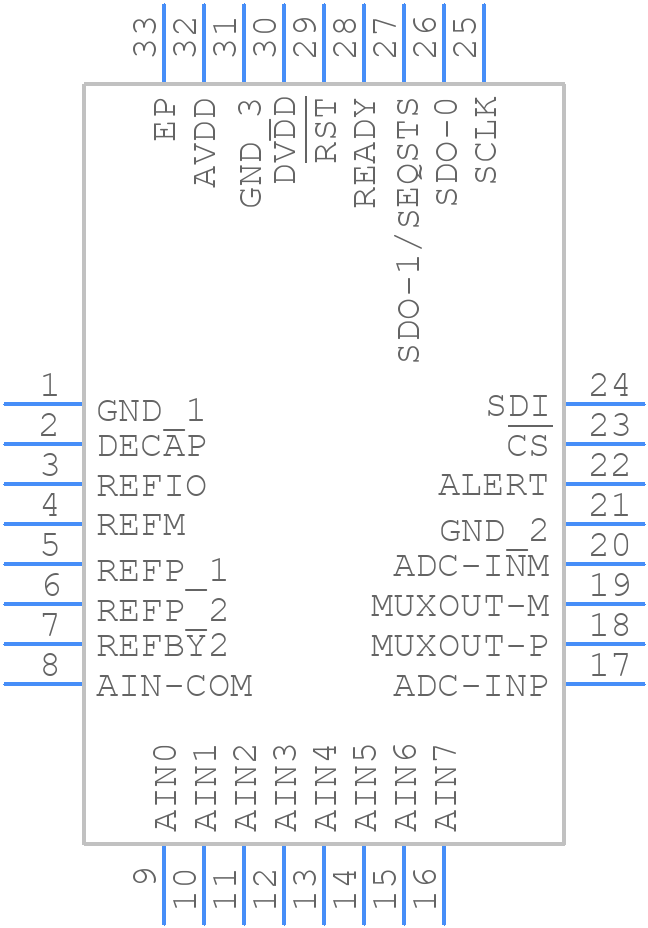

Use the download button to access the ADS8166IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS81,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
