The recommended layout and routing for the ADS8168IRHBR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also important to keep the analog and digital power supplies separate and to use decoupling capacitors to reduce noise.
To optimize the performance of the ADS8168IRHBR in noisy environments, use shielding, filtering, and grounding techniques to reduce electromagnetic interference (EMI). Additionally, use a low-pass filter at the analog input to reduce high-frequency noise, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise on the power supply lines.
The maximum sampling rate of the ADS8168IRHBR is 500 kSPS. As the sampling rate increases, the power consumption of the device also increases. At the maximum sampling rate, the power consumption is approximately 35 mW.
The ADS8168IRHBR requires a two-point calibration procedure to ensure accurate conversions. The recommended calibration procedure involves applying a known input voltage to the device and adjusting the offset and gain registers to achieve the desired accuracy.
The ADS8168IRHBR is sensitive to temperature changes, which can affect its performance and accuracy. The device operates within a temperature range of -40°C to 125°C, and its performance may degrade at extreme temperatures. It's essential to ensure proper thermal management, such as using a heat sink or a thermally conductive material, to maintain a stable temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8168IRHBR Overview

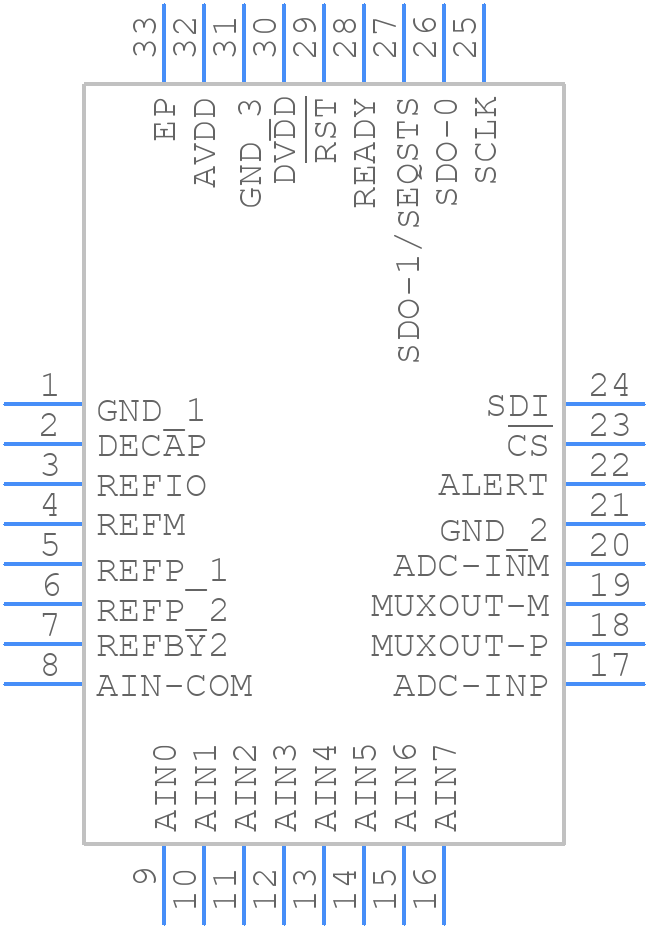

Use the download button to access the ADS8168IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS81,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
